Caterpillar

627B

Scraper

Net Power
225.0 hp
Max Speed - Forward
34.0 mph
All scrapers

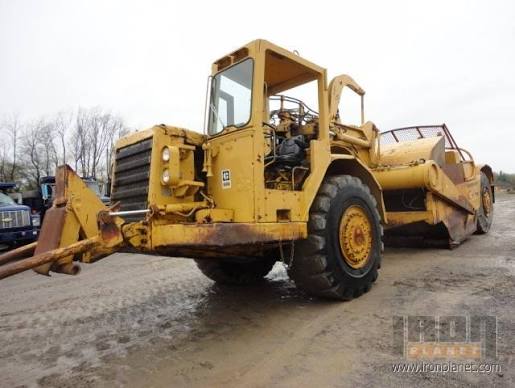

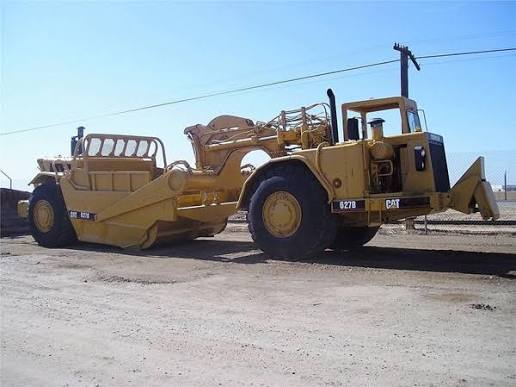

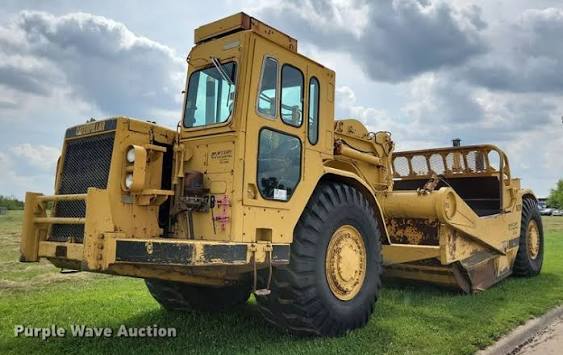

Caterpillar 627B Scraper
1 / 5
Image 1 of 5
Image: mylittlesalesman.com

Specifications

18 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity265.0 gal
Tire Size29.5x29 28PR

Weights

Weights specifications
Total Operating - empty76,200 lb

Dimensions

Dimensions specifications
Wheelbase305 in
Overall Length526 in
Overall Width137 in
Overall Height143 in

Transmission

Transmission specifications
Max Speed - Forward34.0 mph

Bowl

Bowl specifications
Heaped Capacity20.00 yd³
Width of Cut120 in
Max Depth of Cut13 in
Struck Capacity14.00 yd³

Scraper Engine

Scraper Engine specifications
Net Power225.0 hp
Displacement638 in³
Power Measured @2,100 rpm

Tractor Engine

Tractor Engine specifications
Net Power225.0 hp
Displacement638 in³
Power Measured @2,100 rpm
