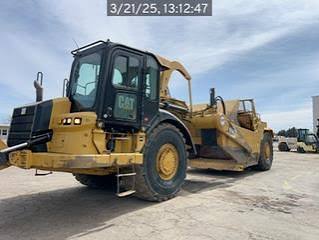

CaterpillarCaterpillar
633E II
Scraper
91 specifications
1 / 5
Image 1 of 5
Specifications
49 data points
Operating Specifications
| Fuel Capacity | 336.0 gal |
|---|---|
| Cooling System Fluid Capacity | 19.0 gal |
| Transmission Fluid Capacity | 13.0 gal |
| Engine Oil Fluid Capacity | 7.5 gal |
| Differential Fluid Capacity | 14.0 gal |
Hydraulic System
| Bowl Cylinder Bore | 6 in |
|---|---|
| Bowl Cylinder Stroke | 33 in |
| Ejector Cylinder Stroke | 61 in |
| Ejector Cylinder Bore | 6 in |
| Apron Cylinder Bore | 6 in |
| Apron Cylinder Stroke | 22 in |
Transmission
| Max Speed - Forward | 33.5 mph |
|---|---|
| Max Speed - Reverse | 5.7 mph |
| Number of Forward Gears | 8 |
| Number of Reverse Gears | 1 |
| 1 Forward | 3.1 mph |
| 2 Forward | 5.5 mph |
| 3 Forward | 7.5 mph |
| 4 Forward | 10.1 mph |
| 5 Forward | 13.6 mph |
| 6 Forward | 18.4 mph |
| Reverse | 5.7 mph |
| 7 Forward | 24.8 mph |
| 8 Forward | 33.5 mph |
| Top Speed - Loaded | 33.5 mph |
Steering System
| Steering Angle - Left | 82 ° |
|---|---|
| Steering Angle - Right | 85 ° |
Bowl
| Heaped Capacity | 24.00 yd³ |
|---|---|
| Width of Cut | 1,482 in |
| Max Depth of Cut | 12 in |
| Struck Capacity | 17.09 yd³ |
Scraper Engine
| Gross Power | 290.0 hp |
|---|---|
| Make | Caterpillar |
Tractor Engine
| Gross Power | 407.0 hp |
|---|---|
| Displacement | 763 in³ |
| Make | Caterpillar |
| Power Measured @ | 1,700 rpm |
| Flywheel Power - Tractor/Scraper | 304 kW (407)/216 kW (290) |
Scraper Bowl
| Rated Load | 57,600 lb |
|---|---|
| Scraper Capacity - Heaped | 24.00 yd³ |
Service Refill Capacities - Tractor
| Cooling System | 17.0 gal |
|---|---|
| Differential | 45.8 gal |
| Final Drive - Each | 5.0 gal |
| Hydraulic Reservoir | 22.0 gal |
| Transmission | 18.5 gal |
Service Refill Capacities - Scraper
| Cooling System | 19.0 gal |
|---|---|
| Differential | 14.0 gal |
| Final Drive - Each | 5.0 gal |
| Transmission | 13.0 gal |
