Caterpillar

631D

Scraper

Net Power
450.0 hp
Max Speed - Forward
31.0 mph
All scrapers

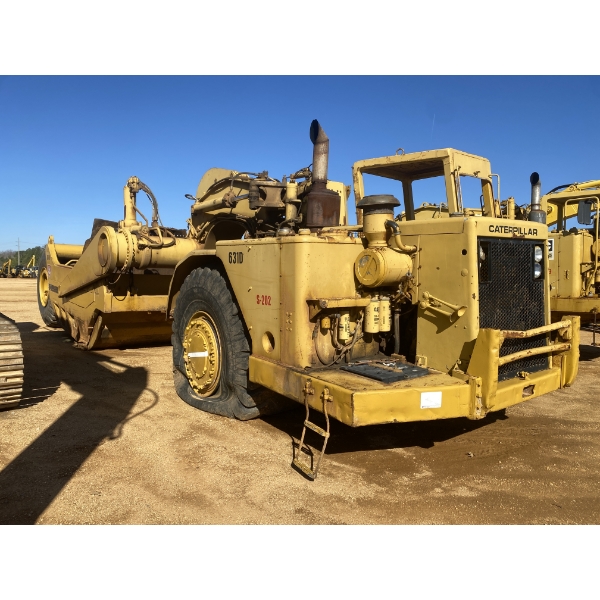

Caterpillar 631D Scraper
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

15 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity250.0 gal
Tire Size33.25x35 38PR

Weights

Weights specifications
Total Operating - empty88,900 lb

Dimensions

Dimensions specifications
Wheelbase346 in
Overall Length561 in
Overall Width156 in
Overall Height165 in

Transmission

Transmission specifications
Max Speed - Forward31.0 mph

Bowl

Bowl specifications
Heaped Capacity31.00 yd³
Width of Cut138 in
Max Depth of Cut19 in
Struck Capacity21.01 yd³

Tractor Engine

Tractor Engine specifications
Net Power450.0 hp
Displacement1,099 in³
Power Measured @2,000 rpm

Comparable machines

Other scrapers in a similar weight class.
