Caterpillar

631E

Scraper

Gross Power
450.0 hp
Max Speed - Forward
29.9 mph
All scrapers

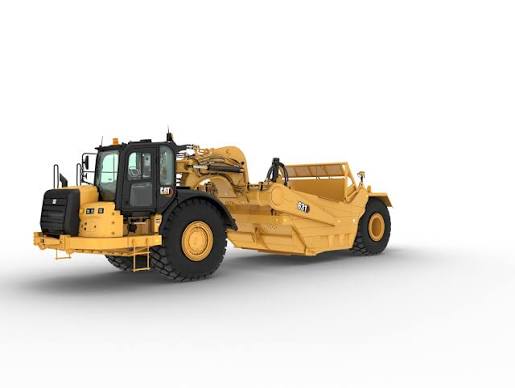

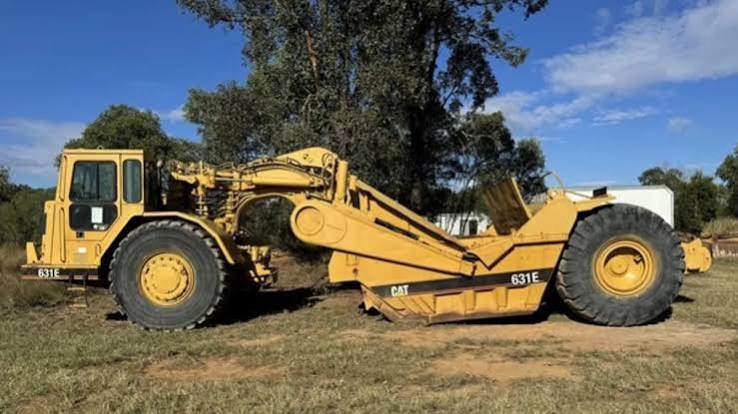

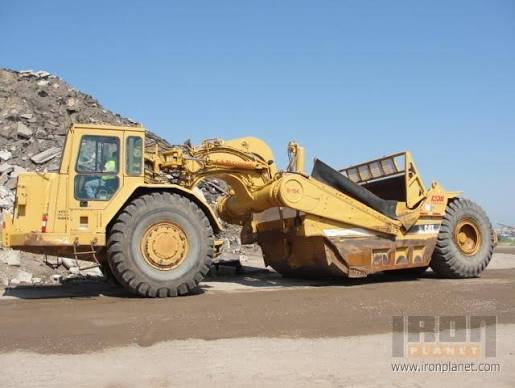

Caterpillar 631E Scraper
1 / 5
Image 1 of 5
Image: diecastmatt.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity196.9 gal
Tire Size37.25-35 30PR (E-3)

Weights

Weights specifications
Total Operating - empty96,882 lb
Total Operating - Loaded171,884 lb
Front Axle - empty64,911 lb
Rear Axle - empty31,972 lb
Front Axel - loaded91,097 lb
Rear Axle - loaded80,786 lb

Dimensions

Dimensions specifications
Wheelbase346 in
Overall Length563 in
Overall Width156 in
Overall Height169 in

Transmission

Transmission specifications
Max Speed - Forward29.9 mph
Number of Forward Gears7

Bowl

Bowl specifications
Heaped Capacity31.00 yd³
Width of Cut138 in
Max Depth of Cut17 in
Rated Payload75,001 lb
Struck Capacity21.10 yd³

Tractor Engine

Tractor Engine specifications
Gross Power450.0 hp
Displacement1,099 in³
MakeCaterpillar
