Caterpillar

633D

Scraper

Net Power
450.0 hp
Gross Power
450.6 hp
All scrapers

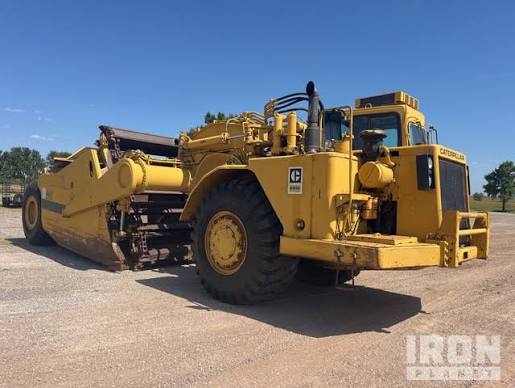

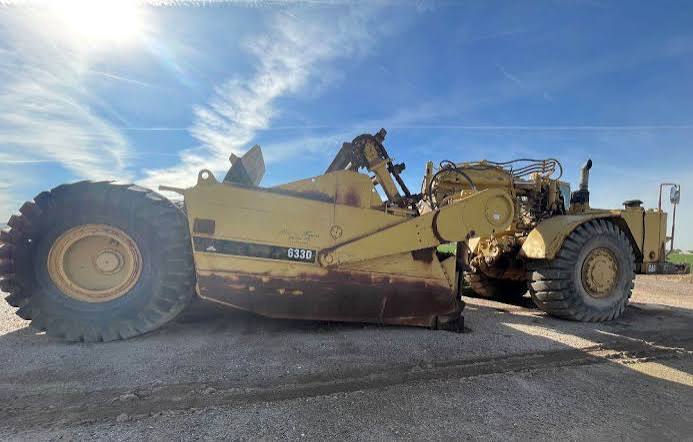

Caterpillar 633D Scraper
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

18 data points

Weights

Weights specifications
Total Operating - Loaded179,831 lb
Front Axle - empty70,266 lb
Rear Axle - empty34,608 lb
Front Axel - loaded95,311 lb
Rear Axle - loaded84,521 lb

Dimensions

Dimensions specifications
Wheelbase350 in
Overall Length568 in
Overall Width156 in
Overall Height168 in

Transmission

Transmission specifications
Number of Forward Gears8

Bowl

Bowl specifications
Width of Cut138 in
Max Depth of Cut15 in
Rated Payload74,957 lb

Tractor Engine

Tractor Engine specifications
Net Power450.0 hp
Gross Power450.6 hp
MakeCaterpillar
Power Measured @2,000 rpm

Elevator

Elevator specifications
Number of Flights13
