Caterpillar

639D

Scraper

Gross Power
450.6 hp
Max Speed - Forward
33.0 mph
All scrapers

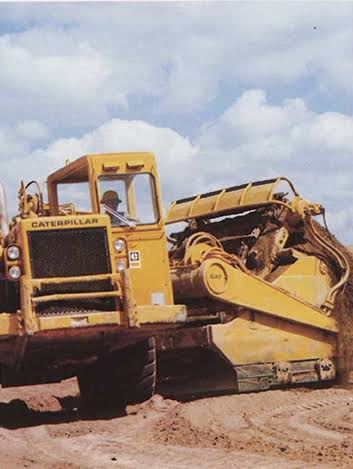

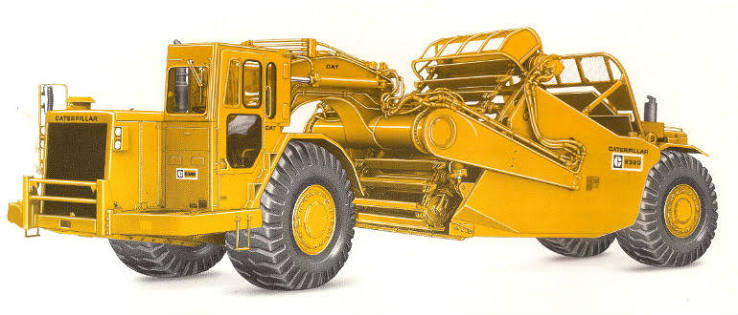

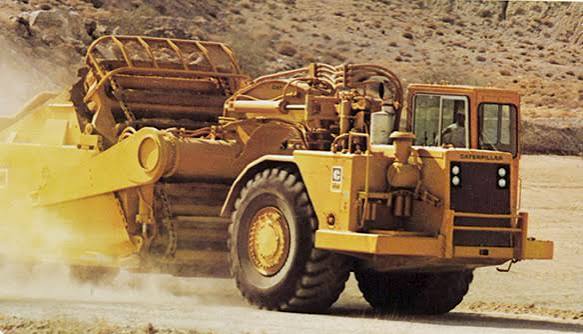

Caterpillar 639D Scraper
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity370.7 gal
Tire Size37.25-35 42PR E-3

Weights

Weights specifications
Total Operating - empty123,900 lb
Total Operating - Loaded198,857 lb
Front Axle - empty73,101 lb
Rear Axle - empty50,799 lb
Front Axel - loaded101,417 lb
Rear Axle - loaded97,440 lb

Dimensions

Dimensions specifications
Wheelbase354 in
Overall Length572 in
Overall Width156 in
Overall Height175 in

Transmission

Transmission specifications
Max Speed - Forward33.0 mph
Number of Forward Gears8

Bowl

Bowl specifications
Heaped Capacity34.10 yd³
Width of Cut138 in
Max Depth of Cut15 in
Rated Payload74,957 lb

Tractor Engine

Tractor Engine specifications
Gross Power450.6 hp
Displacement1,099 in³
MakeCaterpillar

Elevator

Elevator specifications
Number of Flights20
