Caterpillar

641B

Scraper

Net Power
550.0 hp
Max Speed - Forward
32.0 mph
All scrapers

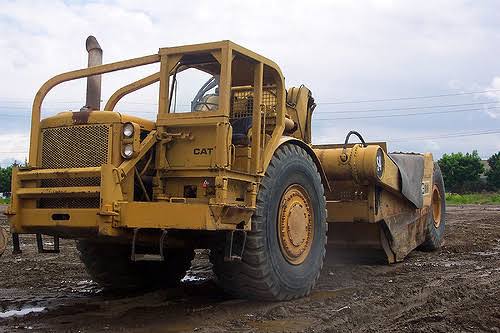

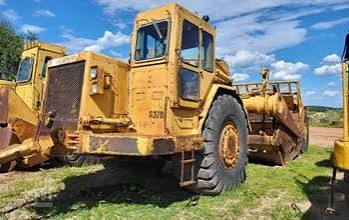

Caterpillar 641B Scraper
1 / 5
Image 1 of 5
Image: parts.cat.com

Specifications

15 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity280.0 gal
Tire Size37.5x39 36PR

Weights

Weights specifications
Total Operating - empty119,000 lb

Dimensions

Dimensions specifications
Wheelbase372 in
Overall Length589 in
Overall Width159 in
Overall Height172 in

Transmission

Transmission specifications
Max Speed - Forward32.0 mph

Bowl

Bowl specifications
Heaped Capacity28.00 yd³
Width of Cut137 in
Max Depth of Cut16 in
Struck Capacity38.00 yd³

Tractor Engine

Tractor Engine specifications
Net Power550.0 hp
Displacement1,190 in³
Power Measured @1,900 rpm
