Caterpillar

651B

Scraper

Net Power
550.0 hp
Max Speed - Forward
32.0 mph
All scrapers

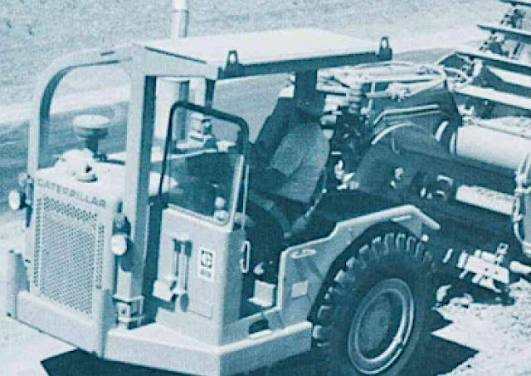

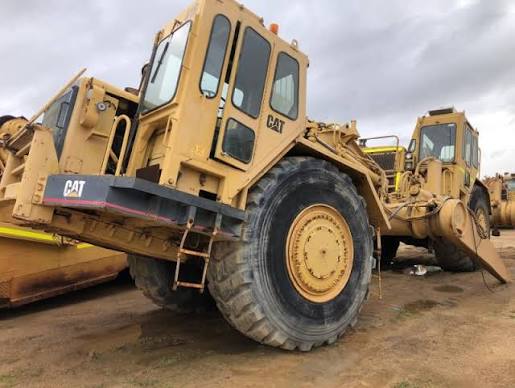

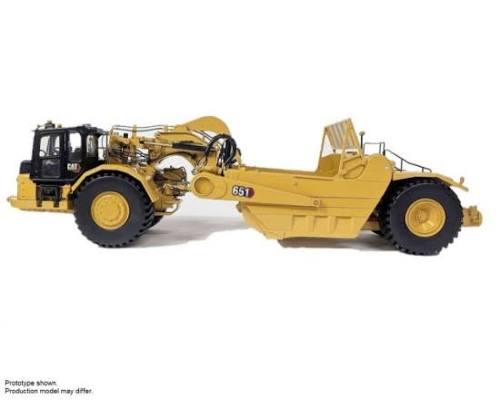

Caterpillar 651B Scraper
1 / 5
Image 1 of 5
Image: ccmodels.com

Specifications

15 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity280.0 gal
Tire Size37.5x3936PR

Weights

Weights specifications
Total Operating - empty126,900 lb

Dimensions

Dimensions specifications
Wheelbase384 in
Overall Length605 in
Overall Width170 in
Overall Height169 in

Transmission

Transmission specifications
Max Speed - Forward32.0 mph

Bowl

Bowl specifications
Heaped Capacity44.00 yd³
Width of Cut144 in
Max Depth of Cut16 in
Struck Capacity31.99 yd³

Tractor Engine

Tractor Engine specifications
Net Power550.0 hp
Displacement1,190 in³
Power Measured @1,900 rpm
