Caterpillar
Terex
TA27
Off-Highway Truck
46 specifications
1 / 5

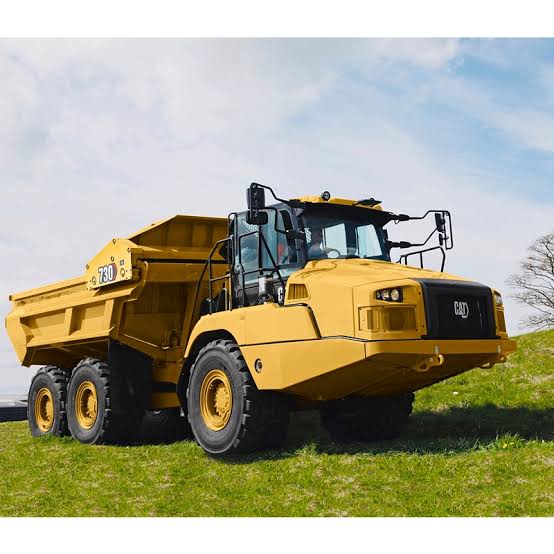

Image 1 of 5
Specifications
87 data points
Operating Specifications
| Fuel Capacity | 94.0 gal |
|---|---|
| Engine Oil Capacity | 11.0 gal |
| Cooling System Fluid Capacity | 18.0 gal |
| Hydraulic System Fluid Capacity | 46.5 gal |
| Transmission Fluid Capacity | 9.5 gal |
Engine
| Displacement | 680 in³ |
|---|---|
| Power Measured @ | 1,800 rpm |
| Gross Power | 325.0 hp |
| Net Power | 317.0 hp |
| Make | Cat |
| Bore | 5 in |
| Stroke | 6 in |
| Gross Power - SAE J1995 | 325.0 hp |
| Net Power - ISO 9249 | 321.0 hp |
| Net Power - SAE J1349 | 319.0 hp |
| Net Power - EEC 80/1269 | 321.0 hp |
Weights
| Operating Weight | 118,330 lb |
|---|---|
| Total Empty | 56,328 lb |
| Front Axle - empty | 30,821 lb |
| Total Loaded | 118,322 lb |
| Rear Axle - empty | 12,368 lb |
| Front Axle - loaded | 32,805 lb |
| Rear Axle - loaded | 42,373 lb |
| Center Axle - empty | 13,140 lb |
| Center Axle - loaded | 43,144 lb |
Dimensions
| Ground Clearance | 121 in |
|---|---|
| Wheelbase | 90 in |
| Overall Length | 383 in |
| Overall Width | 141 in |
| Overall Height | 149 in |
| Dump Height | 120 in |
| Dump Ground Clearance | 36 in |
Transmission
| Max Speed | 34.0 mph |
|---|---|
| Transmission Type | electronic transmission |
| Number of Forward Gears | 6 |
| Number of Reverse Gears | 1 |
| Forward - 1 | 5.0 mph |
| Forward - 2 | 9.0 mph |
| Forward - 3 | 14.0 mph |
| Forward - 4 | 21.0 mph |
| Forward - 5 | 29.0 mph |
| Forward - 6 | 34.0 mph |
| Reverse - 1 | 5.0 mph |
General Specifications
| Operating Weight lbs (kg) | 58,643 (26,600) — Starting 2019 Model Year |
|---|---|
| Engine type | Cat C13 — Starting 2024 Model Year |
| Articulated/Rigid | Articulated — Starting 2024 Model Year |
| Drive Configuration | 6WD — Starting 2019 Model Year |
| Rated Payload Tons (Metric Tons) | 31 (28) — Starting 2019 Model Year |
| Mfg. Model | 730 EJ — Starting 2019 Model Year |
| Planetary Powershift Transmission | Powershift w/ lockup torque converter — Starting 2019 Model Year |
Drive System
| Drive Config | 6x6 |
|---|
Service Refill Capacities
| Cooling System | 18.0 gal |
|---|---|
| Fuel Tank | 94.0 gal |
| Engine Crankcase | 11.0 gal |
| Hydraulic System | 46.5 gal |
| Transmission | 9.5 gal |
| Output Transfer Gear Box | 4.8 gal |
| Final Drives/Differential | 43.3 gal |
Articulating/Rigid
| Articulating/Rigid | Articulated |
|---|
Dump
| Raise Time | 15.0 s |
|---|---|
| Lower Time | 12.0 s |
| Capacity - Heaped | 22.10 yd³ |
| Capacity - Struck | 17.70 yd³ |
Standards
| Brakes | ISO 3450 1996 |
|---|---|
| Cab - ROPS | ISO 3471 2008 |
| Steering | ISO 5010 2007 |
| Cab - FOPS | ISO 3449 Level II 2005 |
Operating Weights
| Total - Empty | 56,328 lb |
|---|---|
| Total - Rated Load | 61,994 lb |
| Center Axle - Empty | 13,140 lb |
| Center Axle - Loaded | 43,144 lb |
| Center Axle - Rated Load | 30,005 lb |
| Front Axle - Empty | 30,821 lb |
| Front Axle - Loaded | 32,805 lb |
| Front Axle - Rated Load | 1,984 lb |
| Rear Axle - Empty | 12,368 lb |
| Rear Axle - Loaded | 42,373 lb |
| Rear Axle - Rated Load | 30,005 lb |
| Total - Loaded | 118,322 lb |
Body
| Plate thickness-Front | 0 in |
|---|
Body Plate Thickness
| Base | 0 in |
|---|---|
| Side | 0 in |
Ejector Cycle Times
| Eject Time | 12.0 s |
|---|---|
| Retract Time | 15.0 s |
Body Capacities
| Heaped (SAE 2:1) | 22.10 yd³ |
|---|---|
| Struck | 17.70 yd³ |
Sound Levels
| Interior Cab | 76 dB(A) |
|---|
