Caterpillar

735

Off-Highway Truck

Operating Weight
135,610 lb
Max Speed
36.3 mph
Gross Power
413.0 hp
Net Power
394.0 hp
All off-highway trucks

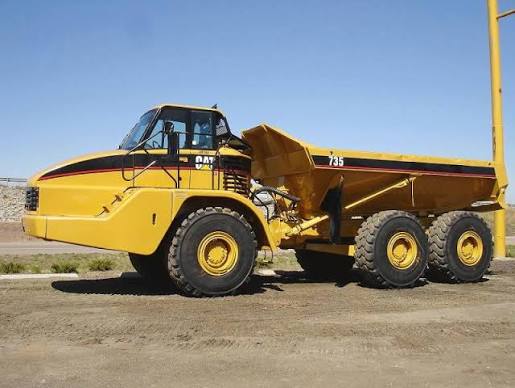

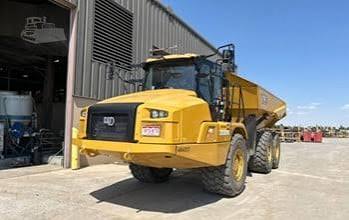

Caterpillar 735 Off-Highway Truck
1 / 5
Image 1 of 5
Image: taylorequipmentny.com

Specifications

110 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity148.0 gal
Tire Size26.5R25
Engine Oil Capacity10.1 gal
Cooling System Fluid Capacity21.2 gal
Hydraulic System Fluid Capacity61.6 gal
Transmission Fluid Capacity19.1 gal

Engine

Engine specifications
Engine ModelCat C15 ACERT
Displacement926 in³
Gross Power413.0 hp
Net Power394.0 hp
Number of Cylinders6
AspirationTurbocharged
Torque Measured @1,200 rpm
Max Torque1,525 lb-ft
MakeCat
Bore5 in
Stroke7 in
Gross Power - SAE J1995435.0 hp
Net Power - ISO 9249424.0 hp
Net Power - SAE J1349419.0 hp
Flywheel Power385.0 hp
Net Power - EEC 80/1269424.0 hp
Net Power - ISO 14396429.0 hp
Peak Engine Torque Speed1,200 rpm
Peak Engine Torque Gross (SAE J1995)1,614 lb-ft
Peak Engine Torque Net (SAE J1349)1,597 lb-ft
Engine Model - U.S. EPA Tier 4 Final/EU Stage IVCat C13 ACERT

Weights

Weights specifications
Operating Weight135,610 lb
Total Empty66,690 lb
Front Axle - empty40,014 lb
Total Loaded138,781 lb
Rear Axle - empty12,588 lb
Front Axle - loaded48,480 lb
Rear Axle - loaded44,401 lb
Center Axle - empty14,088 lb
Center Axle - loaded45,900 lb

Dimensions

Dimensions specifications
Ground Clearance22 in
Wheelbase206 in
Overall Length430 in
Overall Width133 in
Overall Height146 in
Dump Height275 in
Dump Ground Clearance25 in

Transmission

Transmission specifications
Max Speed36.3 mph
Number of Forward Gears8
Number of Reverse Gears1
Forward - 15.2 mph
Forward - 27.1 mph
Forward - 39.6 mph
Forward - 412.9 mph
Forward - 517.5 mph
Forward - 623.5 mph
Reverse - 15.0 mph
Forward - 731.9 mph
Reverse - 26.8 mph

General Specifications

General Specifications specifications
Operating Weight lbs (kg)55,645 (25,240) Starting 2019 Model Year
Engine typeCat C13 Starting 2024 Model Year
Articulated/RigidArticulated Starting 2024 Model Year
Drive Configuration6WD Starting 2019 Model Year
Rated Payload Tons (Metric Tons)35 (32) Starting 2019 Model Year
Mfg. Model735 Starting 2019 Model Year
Planetary Powershift TransmissionPowershift w/ lockup torque converter Starting 2019 Model Year

Drive System

Drive System specifications
Drive Config6x6

Service Refill Capacities

Service Refill Capacities specifications
Cooling System25.1 gal
Fuel Tank148.0 gal
Engine Crankcase10.6 gal
Hydraulic System86.6 gal
Transmission22.5 gal
Output Transfer Gear Box6.3 gal
Final Drives/Differential21.1 gal
DEF Tank5.3 gal

Articulating/Rigid

Articulating/Rigid specifications
Articulating/RigidArticulated

Dump

Dump specifications
Rated Payload72,091 lb
Raise Time11.0 s
Lower Time7.0 s
Capacity - Heaped25.79 yd³
Capacity - Struck19.31 yd³

Standards

Standards specifications
BrakesSAE J/ISO 3450-1998
Cab - ROPSSAE J1040 May 1994 and ISO 3471-1994
SteeringISO 5010 1992E
Cab - FOPSSAE J231 JAN81 and ISO 3449-1992 Level II

Steering System

Steering System specifications
Lock to Lock4.75 seconds @ 60 rpm

Operating Weights

Operating Weights specifications
Total - Empty69,206 lb
Total - Rated Load72,091 lb
Center Axle - Empty14,406 lb
Center Axle - Loaded46,743 lb
Center Axle - Rated Load32,337 lb
Front Axle - Empty41,881 lb
Front Axle - Loaded49,298 lb
Front Axle - Rated Load7,417 lb
Rear Axle - Empty12,919 lb
Rear Axle - Loaded45,256 lb
Rear Axle - Rated Load32,337 lb
Total - Loaded141,297 lb

Body

Body specifications
Plate thickness-Front0 in

Body Plate

Body Plate specifications
Body Plate TypeHigh strength Brinell HB450 wear resistant steel

Body Plate Thickness

Body Plate Thickness specifications
Base1 in
Side1 in
Scow1 in

Turning Circle

Turning Circle specifications
Turning Dimensions - Aisle Width212 in
Turning Dimensions - Clearance Radius318 in
Turning Dimensions - Inside Radius149 in
Turning Dimensions - SAE Turning Radius294 in

Body Capacities

Body Capacities specifications
Heaped (SAE 2:1)25.79 yd³
Struck19.00 yd³
Tailgate Heaped SAE 2:127.30 yd³
Tailgate Struck19.89 yd³

Body Hoist

Body Hoist specifications
Lower Time7.0 s
Raise Time11.0 s

Sound Levels

Sound Levels specifications
Interior Cab79 dB(A)
