Caterpillar
Terex
TA27
Off-Highway Truck
46 specifications
1 / 5

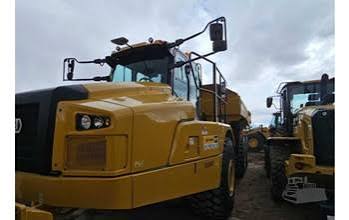

Image 1 of 5
Specifications
97 data points
Operating Specifications
| Fuel Capacity | 148.0 gal |
|---|---|
| Tire Size | 29.5R25 |
| Engine Oil Capacity | 10.1 gal |
| Cooling System Fluid Capacity | 21.2 gal |
| Hydraulic System Fluid Capacity | 61.6 gal |
| Transmission Fluid Capacity | 19.1 gal |
Engine
| Engine Model | Cat C15 ACERT |
|---|---|
| Displacement | 926 in³ |
| Power Measured @ | 1,700 rpm |
| Gross Power | 464.0 hp |
| Net Power | 445.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Make | Cat |
| Stroke | 7 in |
| Bore | 5 in |
| Gross Power - SAE J1995 | 469.0 hp |
| Net Power - ISO 9249 | 458.0 hp |
| Net Power - SAE J1349 | 453.0 hp |
| Net Power - EEC 80/1269 | 458.0 hp |
Weights
| Operating Weight | 151,760 lb |
|---|---|
| Total Empty | 72,400 lb |
| Front Axle - empty | 42,792 lb |
| Total Loaded | 156,176 lb |
| Rear Axle - empty | 14,065 lb |
| Front Axle - loaded | 53,528 lb |
| Rear Axle - loaded | 50,585 lb |
| Center Axle - empty | 15,543 lb |
| Center Axle - loaded | 52,062 lb |
Dimensions
| Ground Clearance | 23 in |
|---|---|
| Wheelbase | 206 in |
| Overall Length | 430 in |
| Overall Width | 135 in |
| Overall Height | 148 in |
| Dump Height | 278 in |
| Dump Ground Clearance | 28 in |
Transmission
| Max Speed | 34.0 mph |
|---|---|
| Number of Forward Gears | 7 |
| Number of Reverse Gears | 2 |
| Forward - 1 | 5.5 mph |
| Forward - 2 | 7.5 mph |
| Forward - 3 | 10.2 mph |
| Forward - 4 | 13.7 mph |
| Forward - 5 | 18.6 mph |
| Forward - 6 | 25.1 mph |
| Reverse - 1 | 5.2 mph |
| Forward - 7 | 34.0 mph |
| Reverse - 2 | 7.2 mph |
General Specifications
| Operating Weight lbs (kg) | 71,377 (32,376) — Starting 2019 Model Year |
|---|---|
| Engine type | Cat C15 ACERT — Starting 2019 Model Year |
| Articulated/Rigid | A — Starting 2019 Model Year |
| Drive Configuration | 6WD — Starting 2019 Model Year |
| Rated Payload Tons (Metric Tons) | 40 (36.3) — Starting 2019 Model Year |
| Mfg. Model | 740 — Starting 2019 Model Year |
| Planetary Powershift Transmission | Powershift w/ lockup torque converter — Starting 2019 Model Year |
Drive System
| Drive Config | 6x6 |
|---|
Service Refill Capacities
| Cooling System | 21.1 gal |
|---|---|
| Fuel Tank | 140.5 gal |
| Engine Crankcase | 9.5 gal |
| Hydraulic System | 86.6 gal |
| Transmission | 19.0 gal |
| Output Transfer Gear Box | 4.8 gal |
| Final Drives/Differential | 19.0 gal |
Articulating/Rigid
| Articulating/Rigid | Articulated |
|---|
Dump
| Rated Payload | 83,776 lb |
|---|---|
| Dump Angle | 70 ° |
| Raise Time | 12.0 s |
| Lower Time | 7.0 s |
| Capacity - Heaped | 30.00 yd³ |
| Capacity - Struck | 22.80 yd³ |
Standards
| Brakes | ISO 3450 - 1996 |
|---|---|
| Cab - ROPS | ISO 3471 - 2008 |
| Steering | ISO 5010 - 2007 |
| Cab - FOPS | ISO 3449 Level II - 2005 |
Operating Weights
| Total - Empty | 72,973 lb |
|---|---|
| Total - Rated Load | 87,083 lb |
| Center Axle - Empty | 15,873 lb |
| Center Axle - Loaded | 53,683 lb |
| Center Axle - Rated Load | 37,809 lb |
| Front Axle - Empty | 42,770 lb |
| Front Axle - Loaded | 54,234 lb |
| Front Axle - Rated Load | 11,464 lb |
| Rear Axle - Empty | 14,330 lb |
| Rear Axle - Loaded | 52,139 lb |
| Rear Axle - Rated Load | 37,809 lb |
| Total - Loaded | 160,055 lb |
Body
| Plate thickness-Front | 0 in |
|---|
Body Plate Thickness
| Base | 1 in |
|---|---|
| Side | 1 in |
| Scow | 1 in |
Body Capacities
| Heaped (SAE 2:1) | 31.40 yd³ |
|---|---|
| Struck | 24.20 yd³ |
| Tailgate Heaped SAE 2:1 | 33.50 yd³ |
| Tailgate Struck | 25.51 yd³ |
Body Hoist
| Lower Time | 7.0 s |
|---|---|
| Raise Time | 12.0 s |
Sound Levels
| Interior Cab | 79 dB(A) |
|---|
