Caterpillar
Terex
TA27
Off-Highway Truck
46 specifications
1 / 5

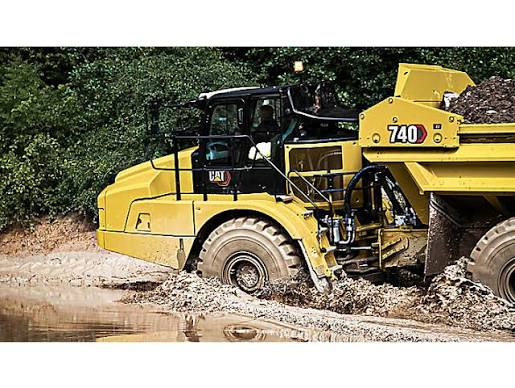

Image 1 of 5
Specifications
76 data points
Operating Specifications
| Fuel Capacity | 148.0 gal |
|---|---|
| Tire Size | 29.5R25 |
| Engine Oil Capacity | 10.1 gal |
| Cooling System Fluid Capacity | 21.2 gal |
| Hydraulic System Fluid Capacity | 61.6 gal |
| Transmission Fluid Capacity | 19.1 gal |
Engine
| Power Measured @ | 1,700 rpm |
|---|---|
| Gross Power | 464.0 hp |
| Net Power | 445.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Make | Cat |
| Net Power - ISO 9249 | 458.0 hp |
| Net Power - EEC 80/1269 | 458.0 hp |
| Net Power - ISO 14396 | 504.0 hp |
| Peak Engine Torque Gross (SAE J1995) | 1,931 lb-ft |
| Peak Engine Torque Speed | 1,200 rpm |
| Peak Engine Torque Net (SAE J1349) | 1,887 lb-ft |
| No Engine De-rating Required Below | 120,000 in |
Weights
| Operating Weight | 157,650 lb |
|---|---|
| Total Empty | 78,507 lb |
| Front Axle - empty | 43,652 lb |
| Total Loaded | 162,282 lb |
| Rear Axle - empty | 16,689 lb |
| Front Axle - loaded | 47,267 lb |
| Rear Axle - loaded | 56,769 lb |
| Center Axle - empty | 18,166 lb |
| Center Axle - loaded | 58,246 lb |
Dimensions
| Ground Clearance | 23 in |
|---|---|
| Wheelbase | 221 in |
| Overall Length | 457 in |
| Overall Width | 135 in |
| Overall Height | 148 in |
| Dump Ground Clearance | 44 in |
Transmission
| Max Speed | 34.3 mph |
|---|---|
| Transmission Type | Powershift |
| Number of Forward Gears | 7 |
| Number of Reverse Gears | 1 |
| Forward - 8 | 23.5 mph |
| Forward - 9 | 34.0 mph |
General Specifications
| Operating Weight lbs (kg) | 79,622 (36,116) — Starting 2019 Model Year |
|---|---|
| Engine type | Cat C18 — Starting 2024 Model Year |
| Articulated/Rigid | Articulated — Starting 2024 Model Year |
| Drive Configuration | 6WD — Starting 2019 Model Year |
| Rated Payload Tons (Metric Tons) | 42 (38) — Starting 2019 Model Year |
| Mfg. Model | 740 EJ — Starting 2019 Model Year |
| Planetary Powershift Transmission | Powershift w/ lockup torque converter — Starting 2019 Model Year |
Drive System
| Drive Config | 6x6 |
|---|
Service Refill Capacities
| Hydraulic System | 87.2 gal |
|---|---|
| Transmission | 19.0 gal |
| Output Transfer Gear Box | 4.8 gal |
| Final Drives/Differential | 60.8 gal |
| DEF Tank | 5.3 gal |
| Final Drive - Each | 1.3 gal |
| Axles - Each | 15.8 gal |
| Brake Cooling Tank | 17.7 gal |
| Steering/Hoist Hydraulic System | 36.9 gal |
| Transmission - OTG | 19.8 gal |
Articulating/Rigid
| Articulating/Rigid | Articulated |
|---|
Dump
| Capacity - Heaped | 35.80 yd³ |
|---|---|
| Capacity - Struck | 23.29 yd³ |
Standards
| Cab - ROPS | ISO 3471 2008 |
|---|---|
| Steering | ISO 5010 2007 |
| Cab - FOPS | ISO 3449 Level II 2005 |
Steering System
| Lock to Lock | 4.8 seconds @ 60 rpm |
|---|
Operating Weights
| Total - Rated Load | 83,776 lb |
|---|
Body
| Plate thickness-Front | 0 in |
|---|
Body Plate
| Body Plate Type | High Strength Brinell HB450 Wear Resistant Steel |
|---|
Body Plate Thickness
| Base | 0 in |
|---|---|
| Side | 0 in |
Ejector Cycle Times
| Eject Time | 14.0 s |
|---|---|
| Retract Time | 24.0 s |
Turning Circle
| Turning Dimensions - Aisle Width | 233 in |
|---|---|
| Turning Dimensions - Clearance Radius | 356 in |
| Turning Dimensions - Inside Radius | 173 in |
| Turning Dimensions - SAE Turning Radius | 339 in |
