Caterpillar
Terex
TA27
Off-Highway Truck
46 specifications
1 / 5

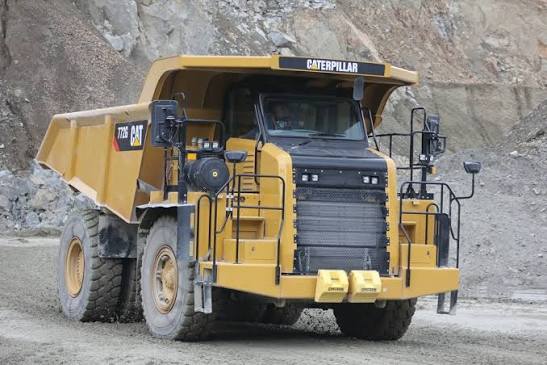

Image 1 of 5
Specifications
108 data points
Operating Specifications
| Fuel Capacity | 140.0 gal |
|---|---|
| Tire Size | 18.00R33(E4) |
| Engine Oil Capacity | 56.0 gal |
| Cooling System Fluid Capacity | 30.0 gal |
| Alternator Supplied Amperage | — |
| Steering System Fluid Capacity | 15.0 gal |
| Diff and Final Drive Fluid Capacity | 42.0 gal |
| Brake/Hoist System Fluid Capacity | 73.0 gal |
| Top Speed - Loaded | 46.5 mph |
| Nominal Payload Capacity | 22 lb |
| Body Capacity - SAE 2:1 | 32.80 yd³ |
| Maximum Capacity | 80,000 lb |
| Nominal Payload Class (100%) | 80,000 lb |
Engine
| Engine Model | Cat C15 ACERT |
|---|---|
| Displacement | 928 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 511.0 hp |
| Net Power | 476.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | — |
| Max Torque | 1,711 lb-ft |
| Make | Cat |
| Stroke | 7 in |
| Bore | 5 in |
| Torque Rise | — |
| Peak Torque | 1,711 lb-ft |
| Gross Power - SAE J1995 | 511.0 hp |
| Net Power - SAE J1349 | 476.0 hp |
| Net Power - 80/1269/EEC | 476.0 hp |
Weights
| Operating Weight | 157,000 lb |
|---|---|
| Operating Weight - Loaded | ISO 5010:1992 lbs |
| Front Axle - empty | — |
| Rear Axle - empty | — |
| Front Axle - loaded | — |
| Rear Axle - loaded | — |
| Empty Weight | 75,490 lb |
| Loaded Weight | 157,000 lb |
| Weight Distribution Front - loaded | 34.0 % |
| Weight Distribution Rear - loaded | 66.0 % |
| Weight Distribution Front - empty | 48.0 % |
| Weight Distribution Rear - empty | 52.0 % |
| Body Weight | 22,110 lb |
| Chassis Weight | 53,380 lb |
Dimensions
| Ground Clearance | 28 in |
|---|---|
| Wheelbase | 156 in |
| Overall Length | 344 in |
| Overall Width | 187 in |
| Overall Height | 124 in |
| Dump Height | 326 in |
| Dump Ground Clearance | 19 in |
| Wheel Base | 156 in |
| Operating Width | 187 in |
| Centerline Front Tire Width | 122 in |
| Overall Height - Body Raised | 326 in |
| Loading Height - Empty | 124 in |
| Front Canopy Height | 163 in |
| Inside Body Length | 220 in |
| Outside Body Width | 1,884,001 in |
Transmission
| Max Speed | 46.5 mph |
|---|---|
| Transmission Type | Power Shift |
| Number of Gears - Forward | 7 |
| Number of Gears - Reverse | 1 |
| Forward - 1 | 7.5 mph |
| Forward - 2 | 10.3 mph |
| Forward - 3 | 14.0 mph |
| Forward - 4 | 18.8 mph |
| Forward - 5 | 25.4 mph |
| Forward - 6 | 34.3 mph |
| Forward - 7 | 46.5 mph |
| Reverse | 9.9 mph |
Brakes & Steering
| Standards | 2.74:1 |
|---|---|
| Brake Surface - Rear | 6,235 in³ |
Tires & Wheels
| Standard Tires | 216 |
|---|---|
| Standard Tire | 18.00R33 (E4) |
General Specifications
| Operating Weight lbs (kg) | 134,912 (61,195) Starting 2016 Model Year |
|---|---|
| Engine type | Cat C15 ACERT Starting 2016 Model Year |
| Articulated/Rigid | R Starting 2016 Model Year |
| Drive Configuration | 2WD Starting 2016 Model Year |
| Rated Payload Tons (Metric Tons) | 36 (32.7) Starting 2016 Model Year |
| Planetary Powershift Transmission | Auto Starting 2016 Model Year |
Drive System
| Drive Config | 4x2 |
|---|
Service Refill Capacities
| Brake/Hoist Hydraulic Tank | 79,991.3 gal |
|---|---|
| Cooling System | 30.0 gal |
| Fuel Tank | 140.0 gal |
| Steering System - Including Tank | 15.0 gal |
| Steering Tank | 9.0 gal |
| Brake / Hoist / Fan Hydraulic Tank | 35.0 gal |
| Torque Converter - Transmission Sump | 53,374.2 gal |
| Crankcase | 9.0 gal |
Articulating/Rigid
| Articulating/Rigid | Rigid |
|---|
Dump
| Raise Time | 9.5 s |
|---|---|
| Lower Time | 12.5 s |
| Load Capacity - heaped | 32.89 yd³ |
| Load Capacity - Struck | 22.41 yd³ |
Steering System
| Steering Standards | ISO 5010:1992 |
|---|---|
| Steer Angle | 40 ° |
| Turning Circle - Clearance Diameter | ISO 3450: 1996 ft |
Approximate Weights - Flat Floor
| Chassis | 35 lb |
|---|
Body Hoists
| Pump Flow - High Idle | 136.0 gal/min |
|---|---|
| Relief Valve Setting - Raise | 2,500 psi |
| Body Raise Time - High Idle | 9.5 s |
| Body Lower Time - Float | 12.5 s |
| Body Power Down - High Idle | 12.5 s |
Final Drives
| Planetary Ratio | 4.80:1 |
|---|---|
| Total Reduction Ratio | 13.15:1 |
Capacity - Flat Floor - 100% Fill Factor
| Heaped 2:1 (SAE) | 32.80 yd³ |
|---|
Suspension
| Effective Cylinder Stroke - Rear | 6 in |
|---|
