Caterpillar

777B

Off-Highway Truck

Max Speed
37.3 mph
Gross Power
920.0 hp
Net Power
870.4 hp
All off-highway trucks

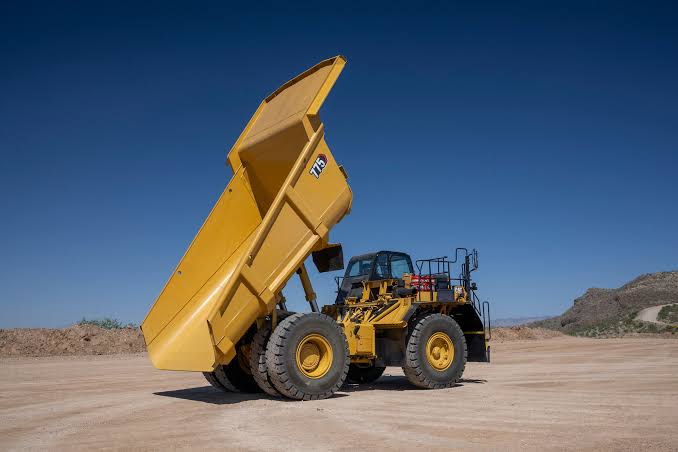

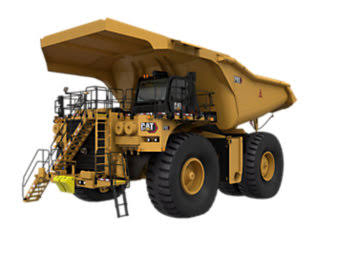

Caterpillar 777B Off-Highway Truck
1 / 5
Image 1 of 5
Image: cat.com

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity250.0 gal
Tire Size24.00-49 48PR

Engine

Engine specifications
Engine Model3508
Displacement2,105 in³
Gross Power920.0 hp
Net Power870.4 hp

Weights

Weights specifications
Empty Weight132,399 lb
Loaded Weight324,005 lb
Weight Distribution Front - loaded33.0 %
Weight Distribution Rear - loaded67.0 %
Weight Distribution Front - empty47.0 %
Weight Distribution Rear - empty53.0 %

Dimensions

Dimensions specifications
Wheelbase180 in
Overall Length386 in
Overall Width216 in
Overall Height193 in
Dump Height367 in

Transmission

Transmission specifications
Max Speed37.3 mph
Number of Gears - Forward7

Service Refill Capacities

Service Refill Capacities specifications
Brake/Hoist Hydraulic Tank189,979.3 gal

Dump

Dump specifications
Rated Payload190,000 lb
Load Capacity - heaped67.10 yd³
Load Capacity - Struck47.70 yd³
