CaterpillarCaterpillar

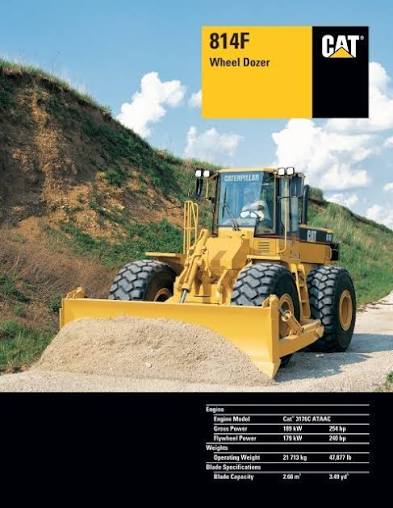

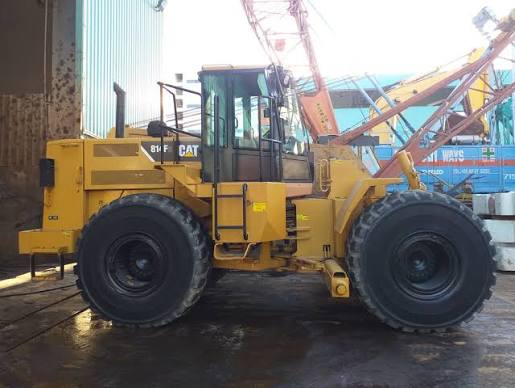

814F II
Wheel Dozer
62 specifications
1 / 5
Image 1 of 5
Specifications
82 data points
Operating Specifications
| Operating Weight | 47,869 lb |
|---|---|
| Fuel Capacity | 117.9 gal |
| Tire Size | 23.5-25 12PR |
| Engine Oil Capacity | 9.0 gal |
| Front Diff Fluid Capacity | 17.2 gal |
| Rear Diff Fluid Capacity | 17.2 gal |
| Transmission Fluid Capacity | 13.3 gal |
| Cooling System Fluid Capacity | 14.6 gal |
| Axle Oscillation | 12 ° |
| Alternator Supplied Amperage | 70 A |
| Operating Voltage | 24 V |
| Ground Clearance | 18 in |
| Steering Angle | 30 ° |
Engine
| Engine Model | Cat 3176C ATAAC |
|---|---|
| Displacement | 629 in³ |
| Power Measured @ | 2,100 rpm |
| Number of Cylinders | 6 |
| Engine Make | 2236 |
| Stroke | 6 in |
| Bore | 5 in |
| Torque Rise | 45.0 % |
| Net Power - ISO 9249 | 240.0 hp |
| Flywheel Power | 240.0 hp |
| Net Power - EEC 80/1269 | 240.0 hp |
| Net Power - SAE J1349 (JAN90) | 240.0 hp |
Weights
| Operating Weight | 47,877 lb |
|---|
Hydraulic System
| Relief Valve Setting | 2,255 psi |
|---|---|
| Lift Cylinder, Bore and Stroke | 120.65 mm x 913.9 mm 4.74 in x 35.98 in |
| Steering Cylinder, Bore and Stroke | 101.6 mm x 597 mm 3.99 in x 23.5 in |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Height - Top of Cab | 132 in |
| Wheelbase | 132 in |
| Width Over Tires | 110 in |
| Wheel Base | 132 in |
| Length With Blade on Ground | 271 in |
| Height - Top of Hood | 94 in |
| Height - Top of Exhaust | 130 in |
| Ground Clearance - Bumper | 30 in |
| Centerline of Rear Axle to Hitch | 66 in |
| Centerline of Rear Axle to Edge of Bumper | 74 in |
| Height - Bottom of Ladder | 18 in |
Transmission
| Max Speed - Forward | 19.3 mph |
|---|---|
| Max Speed - Reverse | 21.9 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Forward - 1 | 3.6 mph |
| Forward - 2 | 6.3 mph |
| Forward - 3 | 10.9 mph |
| Forward - 4 | 19.2 mph |
| Reverse - 1 | 4.1 mph |
| Reverse - 2 | 7.1 mph |
| Reverse - 3 | 12.5 mph |
| Reverse - 4 | 21.8 mph |
Brakes & Steering
| Brakes | Meet OSHA regulations |
|---|
Cab & Operator
| ROPS/FOPS | Meets SAE and ISO standards |
|---|
Tires & Wheels
| Standard Tire Size | 23.5-2512PR |
|---|---|
| Tires | 4 options available |
Service Refill Capacities
| Differential - Final Drives - Front | 17.1 gal |
|---|---|
| Transmission | 13.2 gal |
| Cooling System | 14.5 gal |
| Crankcase | 9.0 gal |
| Fuel Tank - Standard | 117.8 gal |
| Hydraulic Tank | 23.2 gal |
Blades
| Blade Width | 142 in |
|---|---|
| Blade Height | 44 in |
| Straight Blade - Capacity | 3.51 yd³ |
| Straight Blade - Digging Depth | 22 in |
| Straight Blade - Height | 43 in |
| Straight Blade - Maximum Tilt | 31 in |
| Straight Blade - Overall Width | 142 in |
| Maximum Lift Above Ground | 29 in |
| Moldboard - Length | 142 in |
| Straight Blade - Ground Clearance | 29 in |
| Blade Tilt Angle - Left | 8 ° |
| Blade Tilt Angle - Right | 5 ° |
| Blade Tip Angle - Back | 5 ° |
| Blade Tip Angle - Forward | 10 ° |
| Blade Tip Angle - Total | 52 ° |
Steering System
| Turning Radius - With Straight Blade | 187 in |
|---|
Axles
| Front | Fixed |
|---|---|
| Rear | Oscillating 12 degrees |
| Maximum Single-Wheel Rise and Fall | 18 in |
