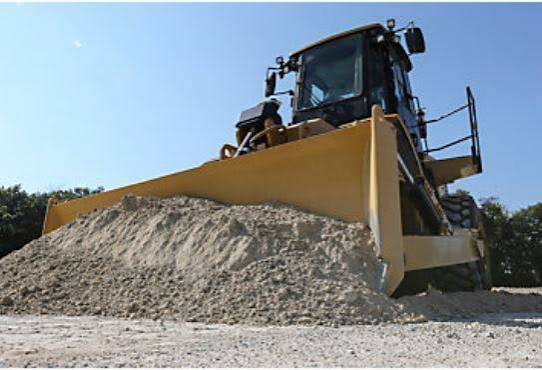

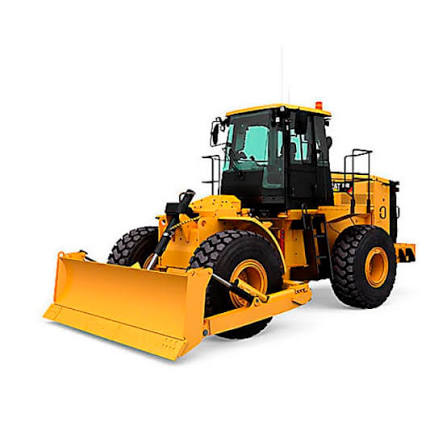

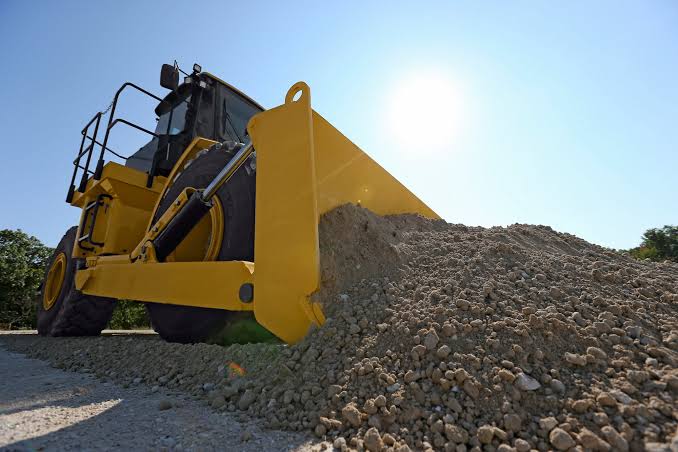

CaterpillarCaterpillar
814F II
Wheel Dozer
62 specifications
1 / 5
Image 1 of 5
Specifications
37 data points
Operating Specifications
| Operating Weight | 48,390 lb |
|---|
Engine
| Engine Model | Cat C7.1 ACERT |
|---|---|
| Gross Power | 248.0 hp |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 145 in |
| Wheel Base | 132 in |
| Centerline of Front Axle to Hitch | 66 in |
| Centerline of Rear Axle to Edge of Bumper | 78 in |
Transmission
| Transmission Type | Cat Planetary Power Shift |
|---|---|
| Forward - 1 | 3.6 mph |
| Forward - 2 | 6.3 mph |
| Forward - 3 | 11.0 mph |
| Forward - 4 | 19.0 mph |
| Reverse - 1 | 4.1 mph |
| Reverse - 2 | 7.2 mph |
| Reverse - 3 | 12.5 mph |
| Reverse - 4 | 21.5 mph |
Brakes & Steering
| Brakes | Single Disc Wet (enclosed) 4 WHL |
|---|
Service Refill Capacities
| Differential - Final Drives - Front | 17.2 gal |
|---|---|
| Transmission | 13.2 gal |
| Fuel Tank | 132.1 gal |
| Engine Crankcase | 5.3 gal |
| Diesel Exhaust Fluid Tank | 4.2 gal |
| Hydraulic Tank Only | 19.8 gal |
Axles
| Front | Planetary Fixed |
|---|---|
| Rear | Planetary Oscillating |
| Oscillation Angle | 10 ° |
Hydraulic System - Lift/Tilt
| Lift/Tilt System - Circuit | Pilot operated LS valve with EH |
|---|---|
| Relief Valve Setting - Lift/Tilt | 3,190 psi |
| Lift/Tilt System | Variable displacement piston |
| Pilot System | Open center fixed displacement gear |
| Cylinders, Double Acting - Left and Right Tilt, Bore and Stroke | 101.6 mm 234 mm (4.0 in 9.2 in) |
| Cylinders, Double Acting - Lift, Bore and Stroke | 120 mm 915 mm (4.7 in 36.0 in) |
| Pilot Relief Valve Setting | 3,046 psi |
Hydraulic System - Steering
| Steering System - Circuit | Pilot load sensing |
|---|---|
| Steering System - Pump | Variable displacement piston |
| Relief Valve Setting - Steering | 4,003 psi |
