Caterpillar
824G II
- Operating Weight
- 63,326 lb
- Operating Weight
- 63,325 lb
- Max Speed - Forward
- 20.6 mph
- Gross Power
- 339.3 hp
1 / 5

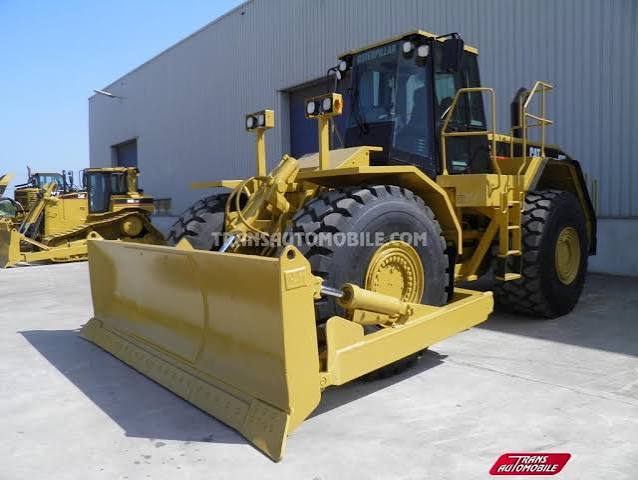

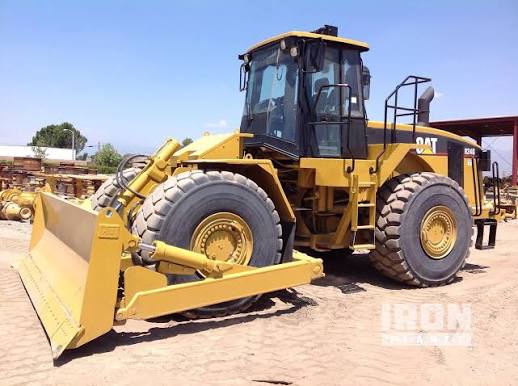

Image 1 of 5
Specifications
75 data points
Operating Specifications
| Operating Weight | 63,326 lb |
|---|---|
| Fuel Capacity | 166.5 gal |
| Tire Size | 29.5-5 16PR |
Engine
| Engine Model | Cat 3406E ATAAC Diesel |
|---|---|
| Displacement | 891 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 339.3 hp |
| Number of Cylinders | 6 |
| Engine Make | 2236 |
| Stroke | 7 in |
| Bore | 5 in |
| Net Power - ISO 9249 | 339.0 hp |
| Flywheel Power | 339.0 hp |
| Net Power - EEC 80/1269 | 339.0 hp |
| Net Power - SAE J1349 (JAN90) | 339.0 hp |
Weights
| Operating Weight | 63,325 lb |
|---|
Hydraulic System
| Relief Valve Setting | 3,500 psi |
|---|---|
| Lift Cylinder, Bore and Stroke | 120.65 mm x 915 mm 4.75 in x 36 in |
| Steering Cylinder, Bore and Stroke | 114.3 mm x 576 mm 4.5 in x 22.7 in |
| Left Tilt and Tip, Bore and Stroke | 133.35 mm x 255 mm 5.25 in x 10 in |
| Right Tilt and Tip, Bore and Stroke | 152.4 mm x 255 mm 6 in x 10 in |
Dimensions
| Ground Clearance | 16 in |
|---|---|
| Wheelbase | 146 in |
| Width Over Tires | 178 in |
| Wheel Base | 145 in |
| Length With Blade on Ground | 322 in |
| Height - Top of Hood | 101 in |
| Height - Top of Exhaust | 138 in |
| Ground Clearance - Bumper | 35 in |
| Centerline of Rear Axle to Hitch | 73 in |
| Centerline of Rear Axle to Edge of Bumper | 104 in |
| Height - Bottom of Ladder | 28 in |
Transmission
| Max Speed - Forward | 20.6 mph |
|---|---|
| Max Speed - Reverse | 22.8 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Forward - 1 | 3.8 mph |
| Forward - 2 | 6.5 mph |
| Forward - 3 | 11.4 mph |
| Forward - 4 | 20.0 mph |
| Reverse - 1 | 4.3 mph |
| Reverse - 2 | 7.5 mph |
| Reverse - 3 | 13.0 mph |
| Number of Forward Speeds | 4 |
| Number of Reverse Speeds | 4 |
| Reverse - 4 | 22.7 mph |
Brakes & Steering
| Brakes | Meet OSHA SAE J1473 DEC84 ISO 2450-1985 standards. |
|---|
Cab & Operator
| ROPS/FOPS | Meets SAE and ISO standards. |
|---|
Tires & Wheels
| Standard Tire Size | 29.5-25 L-3 |
|---|---|
| Tires | 10 choices in addition to standard offering. |
Service Refill Capacities
| Differential - Final Drives - Front | 23.8 gal |
|---|---|
| Transmission | 16.4 gal |
| Cooling System | 21.9 gal |
| Crankcase | 9.0 gal |
| Fuel Tank - Standard | 166.5 gal |
| Hydraulic Tank | 23.2 gal |
Blades
| Blade Width | 178 in |
|---|---|
| Blade Height | 49 in |
| Straight Blade - Capacity | 6.20 yd³ |
| Straight Blade - Digging Depth | 204 in |
| Straight Blade - Height | 581 in |
| Straight Blade - Maximum Tilt | 560 in |
| Straight Blade - Overall Width | 178 in |
| Maximum Lift Above Ground | 42 in |
| Moldboard - Length | 166 in |
| Straight Blade - Ground Clearance | 451 in |
| Blade Tilt Angle - Left | 15 ° |
| Blade Tilt Angle - Right | 15 ° |
| Blade Tip Angle - Back | 11 ° |
| Blade Tip Angle - Forward | 11 ° |
| Blade Tip Angle - Total | 22 ° |
Steering System
| Turning Radius - With Straight Blade | 288 in |
|---|---|
| Steering | Full hydraulic power steering |
Axles
| Front | Planetary fixed |
|---|---|
| Rear | Planetary oscillating 13 degrees |
