Caterpillar

834G

Wheel Dozer

Operating Weight
103,851 lb
Operating Weight
103,849 lb
Max Speed - Forward
22.3 mph
Gross Power
480.1 hp
All wheel dozers

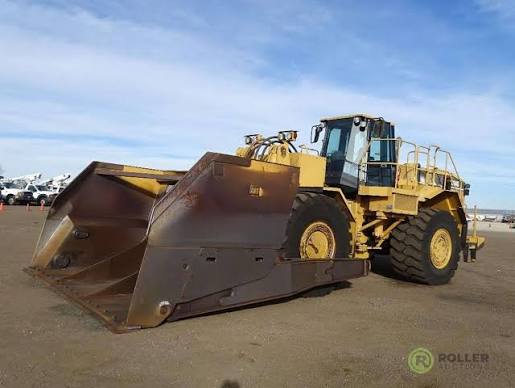

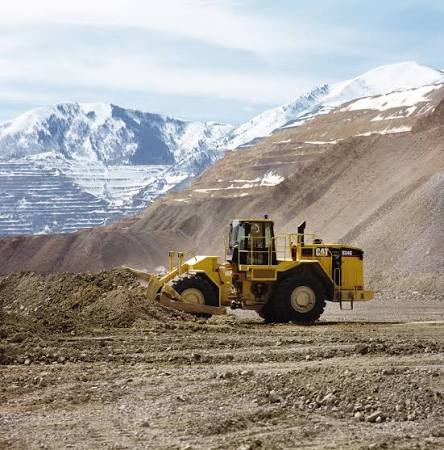

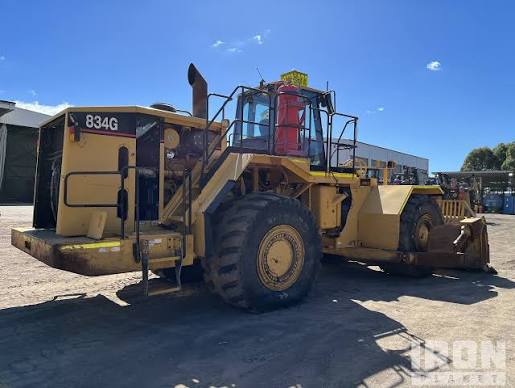

Caterpillar 834G Wheel Dozer
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

79 data points

Operating Specifications

Operating Specifications specifications
Operating Weight103,851 lb
Fuel Capacity212.2 gal
Tire Size35/65-R33 24PR
Ground Clearance22 in

Engine

Engine specifications
Engine ModelCat 3456 Diesel
Displacement964 in³
Power Measured @1,900 rpm
Gross Power480.1 hp
Number of Cylinders6
Engine Make2236
Stroke7 in
Bore6 in
Flywheel Power481.0 hp

Weights

Weights specifications
Operating Weight103,849 lb

Hydraulic System

Hydraulic System specifications
Relief Valve Setting4,206 psi
Lift Cylinder, Bore and Stroke139.75 mm x 1021 mm 5.5 in x 40.2 in
Steering Cylinder, Bore and Stroke114.3 mm x 740 mm 4.5 in x 29.1 in
Left Tilt and Tip, Bore and Stroke139.75 x 276 mm 5.5 x 10.9 in
Right Tilt and Tip, Bore and Stroke152.4 mm x 276 mm 6 in x 10.9 in

Dimensions

Dimensions specifications
Ground Clearance22 in
Height - Top of Cab162 in
Wheelbase180 in
Width Over Tires137 in
Wheel Base180 in
Length With Blade on Ground390 in

Transmission

Transmission specifications
Max Speed - Forward22.3 mph
Max Speed - Reverse13.5 mph
Number of Forward Gears4
Number of Reverse Gears3
Forward - 14.3 mph
Forward - 27.8 mph
Forward - 313.8 mph
Forward - 424.0 mph
Reverse - 14.5 mph
Reverse - 28.1 mph
Reverse - 314.3 mph
Number of Forward Speeds4
Number of Reverse Speeds3
Converter Drive - Forward 14.2 mph
Converter Drive - Forward 27.3 mph
Converter Drive - Forward 312.8 mph
Converter Drive - Reverse 14.4 mph
Converter Drive - Reverse 27.7 mph
Converter Drive - Reverse 313.4 mph
Direct Drive - Forward 1Lock-up Disabled in Forward 1
Direct Drive - Forward 27.7 mph
Direct Drive - Forward 313.6 mph
Direct Drive - Reverse 14.5 mph
Direct Drive - Reverse 314.3 mph
Direct Drive - Forward 424.1 mph
Converter Drive - Forward 422.3 mph

Brakes & Steering

Brakes & Steering specifications
BrakesMeet SAE/ISO 3450 1996.

Cab & Operator

Cab & Operator specifications
ROPS/FOPSMeets SAE and ISO standards.
Sound Performance LevelsMeets ANSI/SAE SAE and ISO standards.
CabROPS/FOPS is standard.

Tires & Wheels

Tires & Wheels specifications
Standard Tire Size35/65-33
TiresFour choices with others on request.

Service Refill Capacities

Service Refill Capacities specifications
Differential - Final Drives - Front49.1 gal
Transmission19.0 gal
Cooling System25.0 gal
Crankcase15.9 gal
Fuel Tank - Standard210.0 gal
Hydraulic Tank37.0 gal

Blades

Blades specifications
Blade Width200 in
Blade Height59 in
Straight Blade - Capacity10.40 yd³
Straight Blade - Digging Depth263 in
Straight Blade - Height690 in
Straight Blade - Maximum Tilt600 in
Straight Blade - Overall Width2,398 in
Maximum Lift Above Ground50 in
Moldboard - Length224 in
Straight Blade - Ground Clearance605 in
Straight Blade - Total Operating Weight103,849 lb

Steering System

Steering System specifications
Turning Radius - With Straight Blade350 in
SteeringMeets SAE J1511 FEB94/ISO 5010:1992 stds.

Axles

Axles specifications
FrontFixed axle
RearOscillating +/-13 degrees
Maximum Single-Wheel Rise and Fall18 in
