Michigan

380B

Wheel Dozer

Operating Weight
113,670 lb
Max Speed - Forward
17.8 mph
All wheel dozers

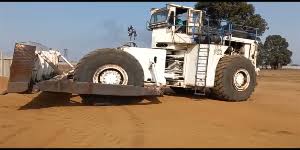

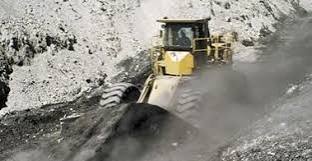

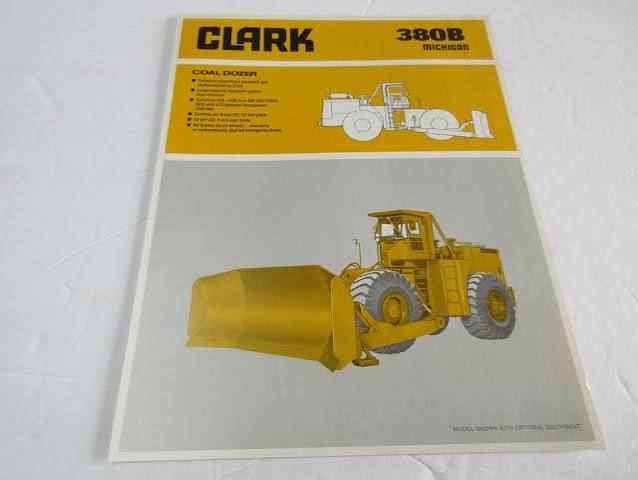

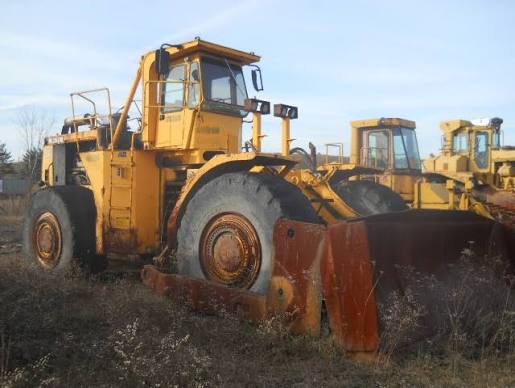

Michigan 380B Wheel Dozer
1 / 5
Image 1 of 5
Image: nimsi.co

Specifications

29 data points

Operating Specifications

Operating Specifications specifications
Operating Weight113,670 lb
Fuel Capacity200.1 gal
Tire Size3725-35 (30PR) E-3
Engine Oil Capacity27.0 gal
Front Diff Fluid Capacity24.5 gal
Rear Diff Fluid Capacity24.5 gal
Transmission Fluid Capacity33.0 gal
Cooling System Fluid Capacity55.0 gal
Axle Oscillation15 °
Alternator Supplied Amperage100 A
Operating Voltage24 V

Engine

Engine specifications
Engine ModelVTA-28-C
Displacement1,710 in³
Power Measured @2,100 rpm
Number of Cylinders12
Torque Measured @1,300 rpm
Net Torque2,065 lb-ft

Dimensions

Dimensions specifications
Ground Clearance30 in
Height - Top of Cab180 in
Wheelbase185 in
Width Over Tires152 in
Length With Blade on Ground400 in

Transmission

Transmission specifications
Max Speed - Forward17.8 mph
Max Speed - Reverse17.8 mph
Number of Forward Gears4
Number of Reverse Gears4
Transmission TypeClark countershaft powershift

Blades

Blades specifications
Blade Capacity13.39 yd³
Blade Width190 in
