CaterpillarCaterpillar
854K
Wheel Dozer
57 specifications
Caterpillar
844
- Operating Weight
- 155,117 lb
- Operating Weight
- 156,120 lb
- Max Speed - Forward
- 13.1 mph
- Gross Power
- 620.0 hp
1 / 5

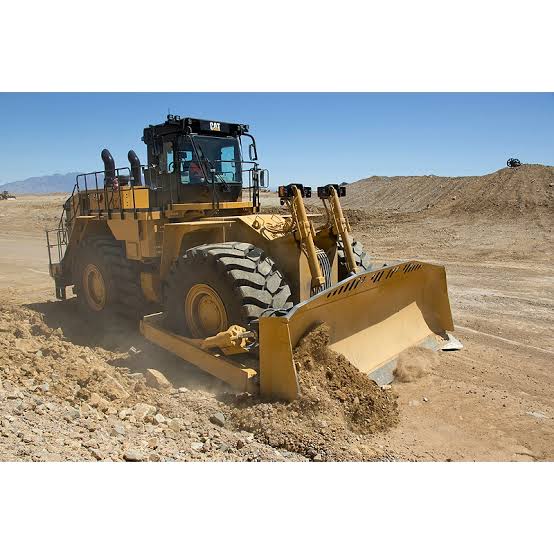

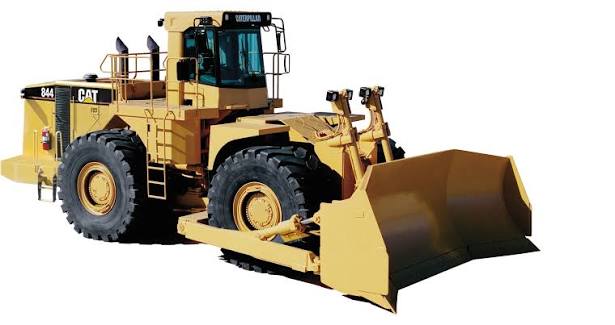

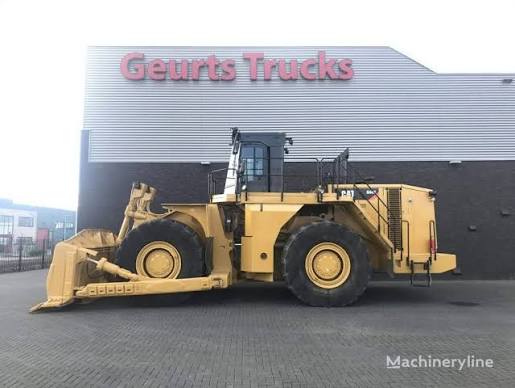

Image 1 of 5
Specifications
54 data points
Operating Specifications
| Operating Weight | 155,117 lb |
|---|---|
| Fuel Capacity | 212.2 gal |
| Tire Size | 45/65-R39 PR |
| Ground Clearance | 19 in |
| Blade Capacities | 15.9 to 30.7 m3 20.7 to 40.2 yd3 |
Engine
| Engine Model | Cat 3412E |
|---|---|
| Displacement | 1,648 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 620.0 hp |
| Number of Cylinders | 12 |
| Engine Make | 2236 |
| Stroke | 6 in |
| Bore | 5 in |
| Flywheel Power | 620.0 hp |
Weights
| Operating Weight | 156,120 lb |
|---|
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 198 in |
| Wheelbase | 181 in |
| Width Over Tires | 173 in |
| Length With Blade on Ground | 431 in |
Transmission
| Max Speed - Forward | 13.1 mph |
|---|---|
| Max Speed - Reverse | 14.3 mph |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
| Number of Forward Speeds | 3 |
| Number of Reverse Speeds | 3 |
| Converter Drive - Forward 1 | 4.4 mph |
| Converter Drive - Forward 2 | 7.6 mph |
| Converter Drive - Forward 3 | 13.0 mph |
| Converter Drive - Reverse 1 | 4.8 mph |
| Converter Drive - Reverse 2 | 8.4 mph |
| Converter Drive - Reverse 3 | 14.3 mph |
| Direct Drive - Forward 1 | 4.5 mile/h |
| Direct Drive - Forward 2 | 7.9 mph |
| Direct Drive - Forward 3 | 14.0 mph |
| Direct Drive - Reverse 1 | 4.9 mph |
| Direct Drive - Reverse 3 | 15.4 mph |
Brakes & Steering
| Brakes | Meets SAE/ISO 3450 1996. |
|---|
Cab & Operator
| ROPS/FOPS | Meets SAE and ISO standards. |
|---|---|
| Sound Performance Levels | Meets ANSI SAE and ISO standards. |
Tires & Wheels
| Standard Tire Size | Two choices available. |
|---|
Service Refill Capacities
| Differential - Final Drives - Front | 71.6 gal |
|---|---|
| Transmission | 29.0 gal |
| Cooling System | 50.2 gal |
| Crankcase | 25.0 gal |
| Fuel Tank - Standard | 260.0 gal |
| Hydraulic Tank | 141.0 gal |
Blades
| Blade Capacity | 20.80 yd³ |
|---|---|
| Blade Width | 214 in |
| Blade Height | 73 in |
Steering System
| Steering Angle | 35 ° |
|---|
Axles
| Front | Fixed |
|---|---|
| Rear | Oscillating 11 degrees |
| Maximum Single-Wheel Rise and Fall | 23 in |
