Caterpillar

834H

Wheel Dozer

Operating Weight
103,849 lb
Max Speed - Forward
23.9 mph
All wheel dozers

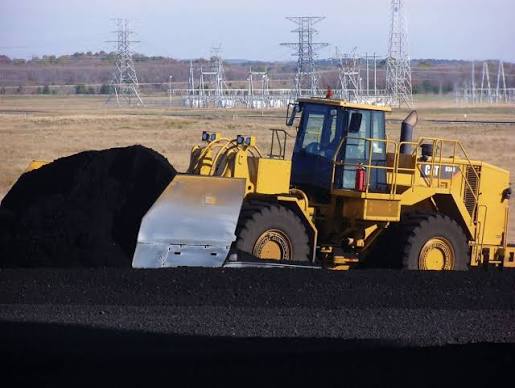

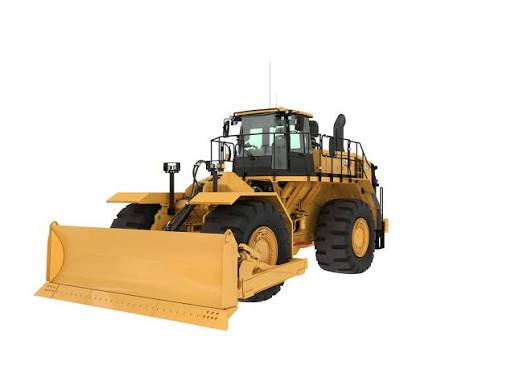

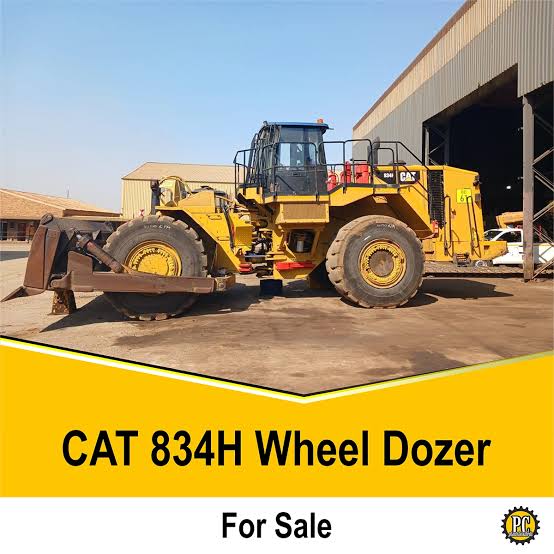

Caterpillar 834H Wheel Dozer
1 / 5
Image 1 of 5
Image: smsmining.com.au

Specifications

53 data points

Operating Specifications

Operating Specifications specifications
Operating Weight103,849 lb
Fuel Capacity209.4 gal
Tire Size35/65-33 L-4
Engine Oil Capacity15.9 gal
Front Diff Fluid Capacity49.1 gal
Rear Diff Fluid Capacity49.1 gal
Transmission Fluid Capacity21.9 gal
Cooling System Fluid Capacity24.8 gal
Axle Oscillation13 °
Alternator Supplied Amperage100 A
Operating Voltage24 V

Engine

Engine specifications
Power Measured @1,800 rpm
Engine Make2236
Bore6 in
Stroke7 in
Net Power - ISO 9249523.0 hp
Net Power - EEC 80/1269501.0 hp
Direct Drive - Gross Power555.0 hp
Direct Drive - Flywheel Power468.0 hp

Dimensions

Dimensions specifications
Ground Clearance22 in
Height - Top of Cab161 in
Wheelbase180 in
Length With Blade on Ground390 in

Transmission

Transmission specifications
Max Speed - Forward23.9 mph
Max Speed - Reverse14.3 mph
Number of Forward Gears4
Number of Reverse Gears3
Converter Drive - Forward 14.2 mph
Converter Drive - Forward 27.2 mph
Converter Drive - Forward 312.6 mph
Converter Drive - Reverse 14.2 mph
Converter Drive - Reverse 27.6 mph
Converter Drive - Reverse 313.3 mph
Direct Drive - Forward 1Lock Up Disabled
Direct Drive - Forward 27.7 mph
Direct Drive - Forward 313.7 mph
Direct Drive - Reverse 14.5 mph
Direct Drive - Reverse 314.3 mph
Direct Drive - Forward 423.9 mph
Converter Drive - Forward 422.0 mph

Brakes & Steering

Brakes & Steering specifications
BrakesMeet SAE/ISO 3450 1996

Cab & Operator

Cab & Operator specifications
ROPS/FOPSMeet SAE and ISO standards
Sound Performance LevelsMeets ANSI/SAE SAE and ISO standards
CabIntegrated Rollover Protective Structure (ROPS)/Falling Object Protective Structure (FOPS) standard

Service Refill Capacities

Service Refill Capacities specifications
Differential - Final Drives - Front49.1 gal
Transmission21.9 gal
Cooling System28.3 gal
Crankcase15.9 gal
Fuel Tank209.5 gal

Blades

Blades specifications
Blade Capacity10.40 yd³
Blade Width200 in
Blade Height57 in

Axles

Axles specifications
FrontPlanetary-Fixed
