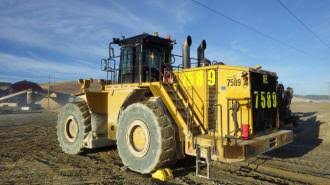

CaterpillarCaterpillar
854K
Wheel Dozer
57 specifications
1 / 5
Image 1 of 5
Specifications
28 data points
Operating Specifications
| Operating Weight | 156,120 lb |
|---|---|
| Fuel Capacity | 268.4 gal |
| Tire Size | 45/65 T39 XLD D1 (L4) |
| Engine Oil Capacity | 25.0 gal |
| Front Diff Fluid Capacity | 71.6 gal |
| Rear Diff Fluid Capacity | 68.9 gal |
| Transmission Fluid Capacity | 29.0 gal |
| Cooling System Fluid Capacity | 39.6 gal |
| Axle Oscillation | 11 ° |
| Alternator Supplied Amperage | 95 A |
| Operating Voltage | 24 V |
| Steering Angle | 35 ° |
Engine
| Engine Model | 27 ACERT |
|---|---|
| Displacement | 1,666 in³ |
| Power Measured @ | 2,000 rpm |
| Engine Make | 2236 |
| Torque Rise | 31.0 % |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 199 in |
| Wheelbase | 181 in |
| Length With Blade on Ground | 432 in |
Transmission
| Max Speed - Forward | 14.0 mph |
|---|---|
| Max Speed - Reverse | 15.4 mph |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Blades
| Blade Capacity | 20.70 yd³ |
|---|---|
| Blade Width | 214 in |
| Blade Height | 80 in |
