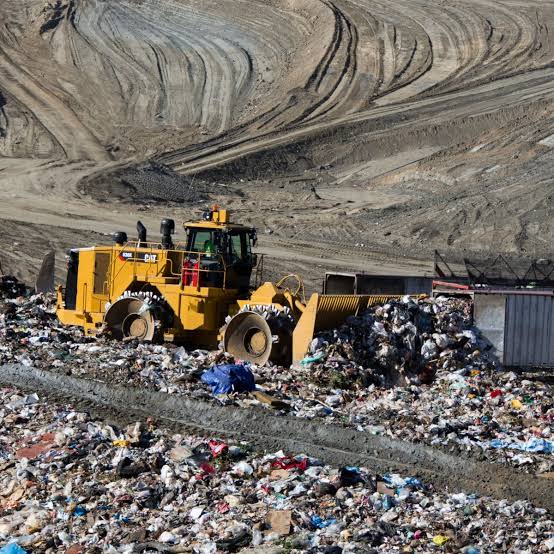

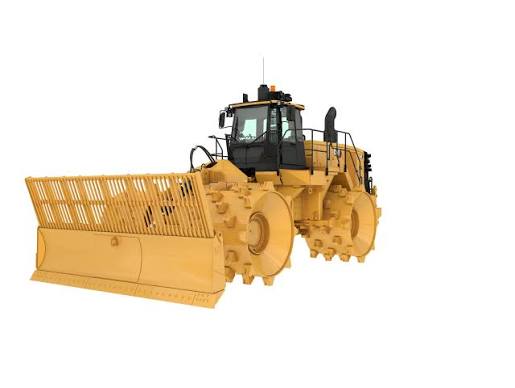

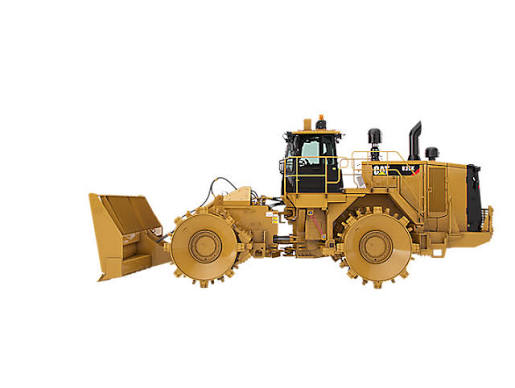

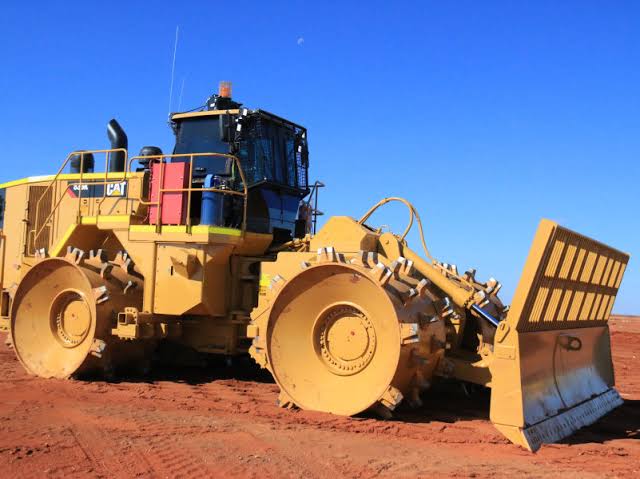

CaterpillarCaterpillar
826H
Landfill Compactor
46 specifications
1 / 5
Image 1 of 5
Specifications
46 data points
Operating Specifications
| Operating Weight | 123,319 lb |
|---|---|
| Fuel Capacity | 209.0 gal |
| Hydraulic System Fluid Capacity | 63.0 gal |
| Cooling System Fluid Capacity | 28.0 gal |
| Transmission Fluid Capacity | 32.0 gal |
Engine
| Engine Model | Cat C18 ACERT |
|---|---|
| Displacement | 1,105 in³ |
| Gross Power | 562.0 hp |
| Net Power | 496.0 hp |
| Max Torque | 2,275 lb-ft |
| Bore | 6 in |
| Stroke | 7 in |
| Emissions | Tier 4 Final/Stage IV/Korea Tier 4 Final or Tier 3/Stage IIIA equivalent |
| High Idle Speed | 2,120 rpm |
| Low Idle Speed | 750 rpm |
| Maximum Altitude - Without Derating | 90,000 in |
Weights
| Operating Weight | 123,319 lb |
|---|
Hydraulic System
| Main Relief Pressure | 3,495 psi |
|---|---|
| Maximum Supply Pressure | 4,640 psi |
Dimensions
| Ground Clearance | 25 in |
|---|---|
| Height - Top of Cab | 183 in |
| Wheelbase | 180 in |
| Wheel Base | 180 in |
| Width Over Wheels | 169 in |
| Height - Top of Hood | 135 in |
| Ground Clearance - Bumper | 41 in |
| Height - Top of Exhaust Pipe | 182 in |
| Hitch to Centerline of Front Axle | 90 in |
| Height - Top of Cab with A/C | 183 in |
| Height - ROPS/Canopy | 169 in |
Transmission
| Number of Forward Gears | 4 |
|---|---|
| Number of Reverse Gears | 4 |
| Transmission Type | Planetary - Powershift - ECPC |
Brakes & Steering
| Parking brake | Spring Applied Hydraulic Released |
|---|
Service Refill Capacities
| Fuel Tank | 209.0 gal |
|---|---|
| Differential - Final Drives - Front | 49.0 gal |
| Differential - Final Drives - Rear | 50.0 gal |
| Transmission | 32.0 gal |
| Cooling System | 28.0 gal |
| Crankcase | 16.0 gal |
Axles
| Front | Planetary Fixed |
|---|---|
| Rear | Planetary Oscillating |
| Oscillation Angle | 13 ° |
Hydraulic System - Steering
| Steering System - Circuit | Steering Double Acting End Mounted |
|---|---|
| Steering System - Pump | Piston Variable Displacement |
| Steering Pressure Limited | 3,495 psi |
