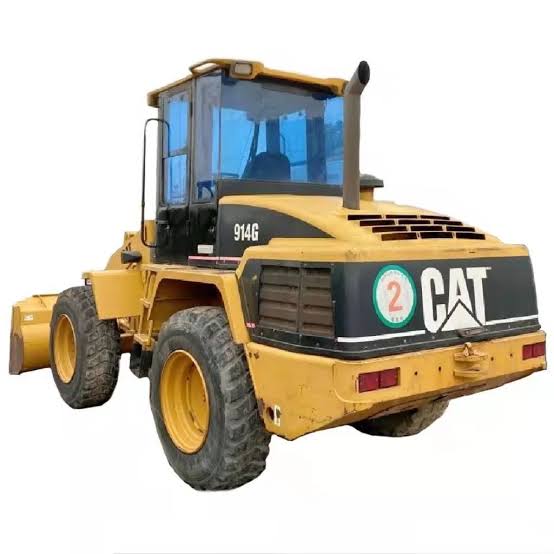

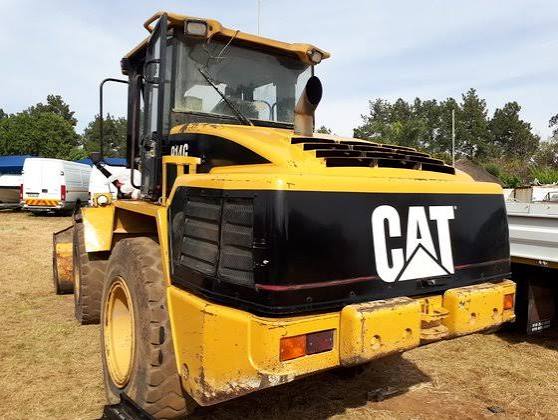

Caterpillar
914G
- Operating Weight
- 16,262 lb
- Bucket Capacity - heaped
- 1.70 yd³
- Gross Power
- 100.0 hp
- Net Power
- 96.0 hp
1 / 5
Image 1 of 5
Specifications
41 data points
Operating Specifications
| Operating Weight | 16,262 lb |
|---|---|
| Fuel Capacity | 39.6 gal |
| Tire Size | 17.5-R25radial(L-2/L3 equivalent) |
| Hydraulic System Fluid Capacity | 26.4 gal |
| Static Tipping Weight | 11,737 lb |
| Operating Voltage | 12 V |
| Turning Radius | 187 in |
| Engine Oil Fluid Capacity | 1.8 gal |
| Rear Axle Oscillation | 22 ° |
| Alternator Supplied Amperage | 60 A |
| Front Axle/Diff Fluid Capacity | 4.0 gal |
| Rear Axle/Diff Fluid Capacity | 4.0 gal |
| Cooling System Fluid Capacity | 5.8 gal |
Engine
| Engine Model | 3054 Turbocharged diesel |
|---|---|
| Displacement | 269 in³ |
| Power Measured @ | 2,300 rpm |
| Gross Power | 100.0 hp |
| Net Power | 96.0 hp |
Hydraulic System
| Pump Flow Capacity | 23.8 gal/min |
|---|---|
| Raise Time | 5.6 s |
| Lower Time | 3.2 s |
| Dump Time | 2.1 s |
| Relief Valve Setting | 3,560 psi |
| Pump Type | fixed displacement |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 122 in |
| Wheelbase | 102 in |
| Width Over Tires | 96 in |
| Reach at Max Lift and Dump | 39 in |
| Length with Bucket on Ground | 246 in |
| Hinge Pin - Max Height | 135 in |
Transmission
| Max Speed - Forward | 21.7 mph |
|---|---|
| Max Speed - Reverse | 21.7 mph |
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 1.70 yd³ |
|---|---|
| Bucket Capacity - struck | 1.40 yd³ |
| Dump Clearance at Max Raise | 106 in |
| Breakout Force | 14,007 lb |
| Bucket Width | 95 in |
