Caterpillar
Komatsu
WA200-8

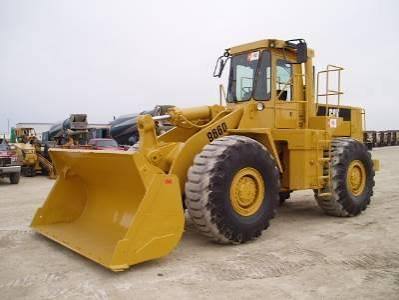

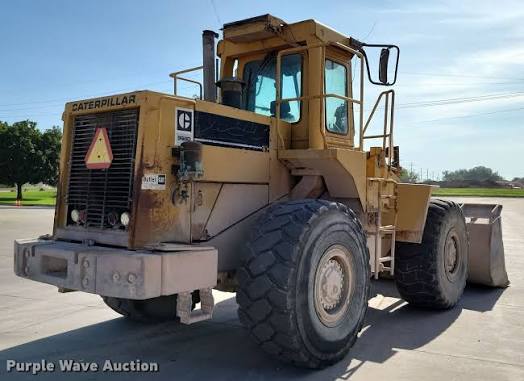

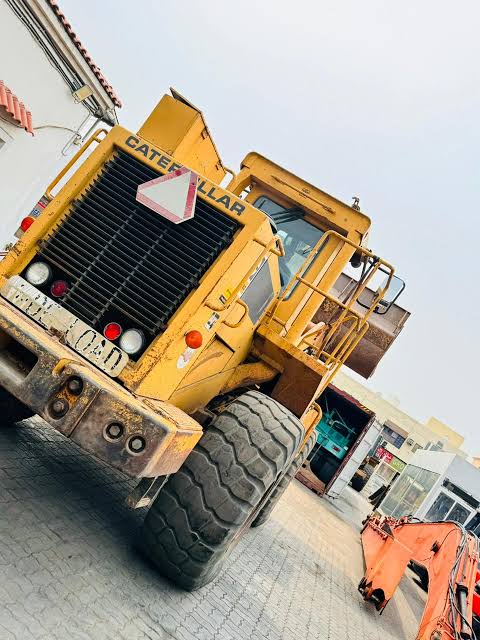

Wheel Loader
14 specifications
1 / 5
Image 1 of 5
Specifications
26 data points
Operating Specifications
| Operating Weight | 43,001 lb |
|---|---|
| Fuel Capacity | 81.4 gal |
| Hydraulic System Fluid Capacity | 60.8 gal |
| Static Tipping Weight | 30,367 lb |
| Turning Radius | 289 in |
Engine
| Engine Model | 3306 |
|---|---|
| Displacement | 641 in³ |
| Net Power | 199.9 hp |
Hydraulic System
| Raise Time | 6.3 s |
|---|---|
| Lower Time | 3.0 s |
| Dump Time | 2.0 s |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 141 in |
| Wheelbase | 132 in |
| Width Over Tires | 113 in |
| Reach at Max Lift and Dump | 43 in |
| Length with Bucket on Ground | 308 in |
| Hinge Pin - Max Height | 23 in |
Transmission
| Max Speed - Forward | 21.4 mph |
|---|---|
| Max Speed - Reverse | 23.7 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 4.09 yd³ |
|---|---|
| Bucket Capacity - struck | 3.51 yd³ |
| Dump Clearance at Max Raise | 120 in |
| Bucket Width | 120 in |
