Volvo

L70C

Wheel Loader

Operating Weight
26,015 lb
Bucket Capacity - heaped
3.30 yd³
Gross Power
130.0 hp
Net Power
122.0 hp
All wheel loaders

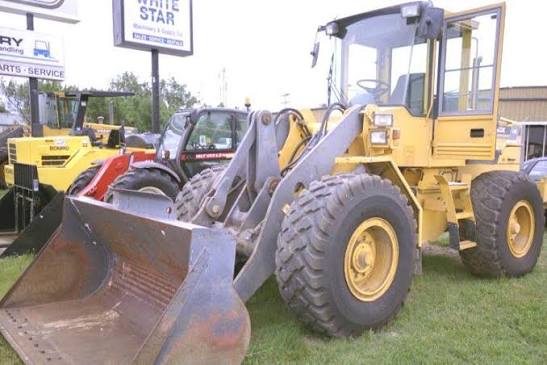

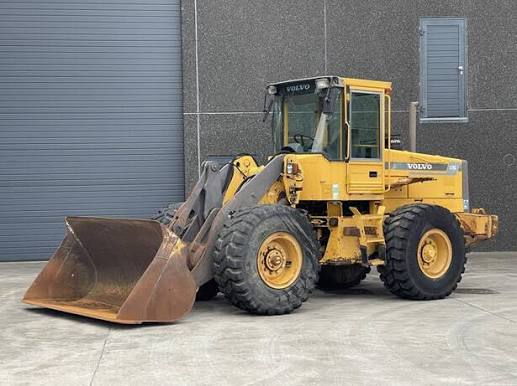

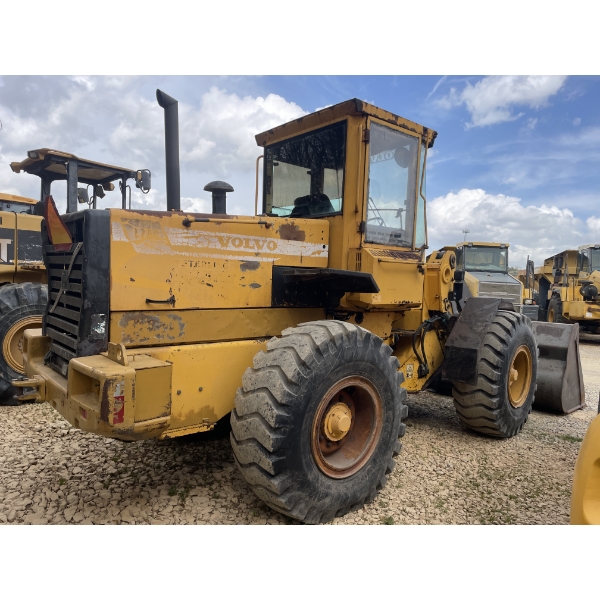

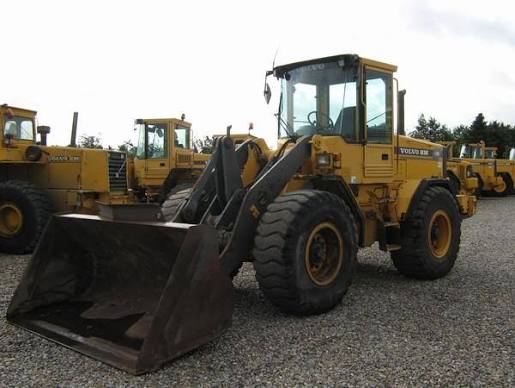

Volvo L70C Wheel Loader
1 / 5
Image 1 of 5
Image: jmwood.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight26,015 lb
Fuel Capacity50.2 gal
Tire Size20.5 R25*L2
Hydraulic System Fluid Capacity17.2 gal
Static Tipping Weight15,234 lb
Operating Voltage24 V
Turning Radius222 in
Engine Oil Fluid Capacity4.3 gal
Rear Axle Oscillation26 °
Alternator Supplied Amperage60 A
Front Axle/Diff Fluid Capacity6.4 gal
Rear Axle/Diff Fluid Capacity6.4 gal
Cooling System Fluid Capacity10.6 gal
Transmission Fluid Capacity4.5 gal

Engine

Engine specifications
Engine ModelTD 63 KDE
Displacement334 in³
Power Measured @2,100 rpm
Gross Power130.0 hp
Net Power122.0 hp
Number of Cylinders6
Aspirationturbocharged
Torque Measured @1,100 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity42.3 gal/min
Raise Time5.1 s
Lower Time3.0 s
Dump Time1.3 s
Relief Valve Setting3,771 psi
Pump Typeaxial piston

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab126 in
Wheelbase113 in
Width Over Tires95 in
Reach at Max Lift and Dump39 in
Length with Bucket on Ground272 in
Hinge Pin - Max Height152 in

Transmission

Transmission specifications
Max Speed - Forward27.3 mph
Max Speed - Reverse16.2 mph
Transmission Typepower shift
Number of Forward Gears4
Number of Reverse Gears3

Bucket

Bucket specifications
Bucket Capacity - heaped3.30 yd³
Dump Clearance at Max Raise113 in
Breakout Force19,760 lb
Bucket Width100 in
