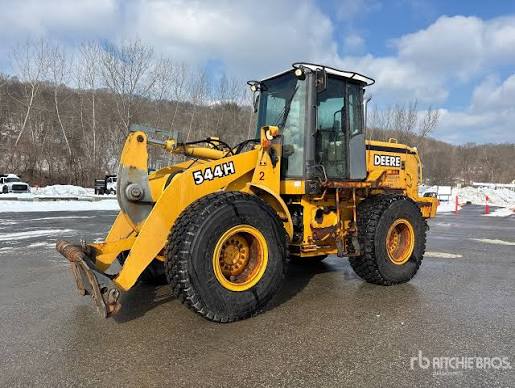

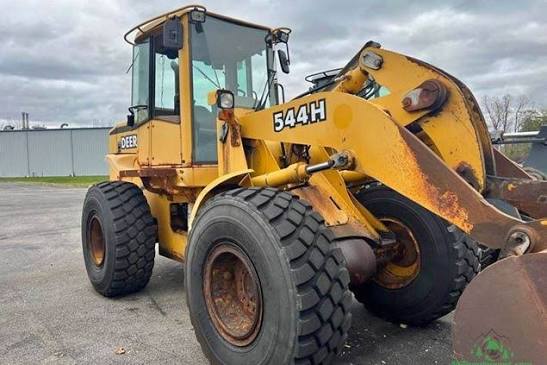

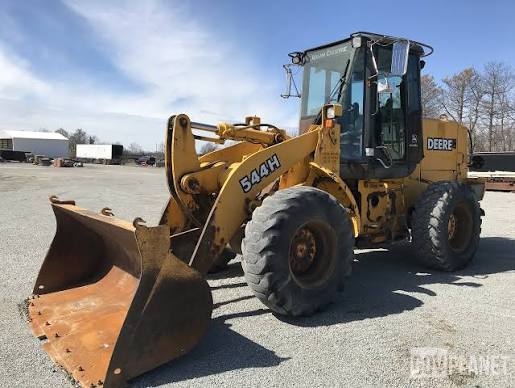

544H

Specifications

51 data points

Operating Specifications specifications
Operating Weight	25,873 lb
Fuel Capacity	65.0 gal
Tire Size	17.5-25
Hydraulic System Fluid Capacity	28.0 gal
Operating Voltage	24 V
Turning Radius	196 in
Engine Oil Fluid Capacity	4.8 gal
Rear Axle Oscillation	28 °
Alternator Supplied Amperage	55 A
Front Axle/Diff Fluid Capacity	5.0 gal
Rear Axle/Diff Fluid Capacity	5.0 gal
Cooling System Fluid Capacity	6.1 gal
Transmission Fluid Capacity	5.3 gal
Engine Oil Capacity	4.8 gal
Static Tipping Load - Bucket	20,106 lb
Front Diff Fluid Capacity	5.1 gal
Rear Diff Fluid Capacity	5.1 gal
Static Tipping Load - Forks	12,498 lb
Static Tipping Load - Material Handler	9,389 lb

Dimensions specifications
Ground Clearance	17 in
Height - Top of Cab	127 in
Width Over Tires	96 in
Length with Bucket on Ground	283 in
Hinge Pin - Max Height	151 in
Length w/ Bucket on Ground	283 in
Dump Clearance at Max Lift	110 in
Reach at Max Height and Dump	41 in
Max Lift Height	143 in
Fork Tine Length	49 in
Length with out Forks on Ground	229 in
Hook Height at Max Lift - standard	222 in
