824J Z-Bar
Wheel Loader
44 specifications
1 / 5

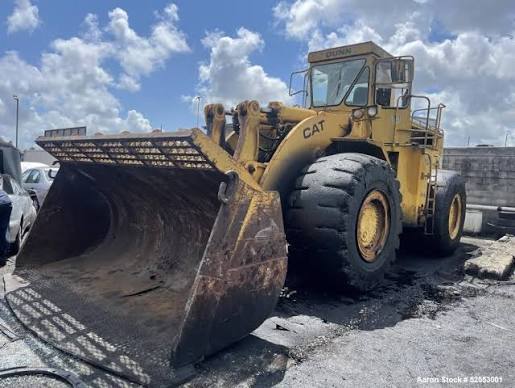

Image 1 of 5
Specifications
23 data points
Operating Specifications
| Operating Weight | 95,604 lb |
|---|---|
| Fuel Capacity | 165.2 gal |
| Hydraulic System Fluid Capacity | 65.0 gal |
| Static Tipping Weight | 49,494 lb |
Engine
| Engine Model | 3408 |
|---|---|
| Displacement | 1,099 in³ |
| Gross Power | 375.0 hp |
Hydraulic System
| Raise Time | 9.4 s |
|---|---|
| Lower Time | 4.5 s |
| Dump Time | 3.0 s |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 163 in |
| Width Over Tires | 139 in |
| Reach at Max Lift and Dump | 85 in |
| Length with Bucket on Ground | 409 in |
Transmission
| Max Speed - Forward | 22.5 mph |
|---|---|
| Max Speed - Reverse | 25.8 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 7.10 yd³ |
|---|---|
| Bucket Capacity - struck | 5.90 yd³ |
| Dump Clearance at Max Raise | 137 in |
| Breakout Force | 80,100 lb |
