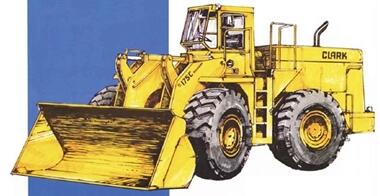

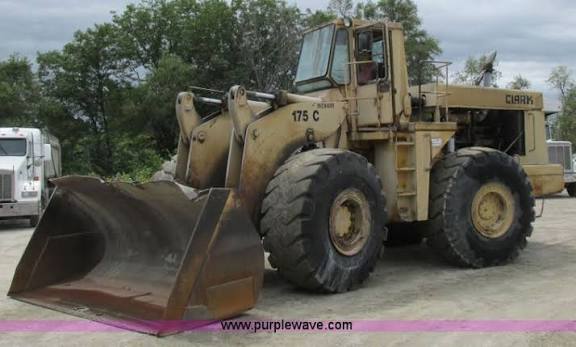

Clark
175C
- Operating Weight
- 57,781 lb
- Bucket Capacity - heaped
- 5.49 yd³
- Gross Power
- 309.8 hp
- Net Power
- 288.4 hp
1 / 5
Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight | 57,781 lb |
|---|---|
| Fuel Capacity | 124.1 gal |
| Tire Size | 26.5-25 20PR |
| Hydraulic System Fluid Capacity | 103.1 gal |
| Static Tipping Weight | 48,568 lb |
| Operating Voltage | 24 V |
| Turning Radius | 296 in |
| Engine Oil Fluid Capacity | 9.1 gal |
| Rear Axle Oscillation | 23 ° |
| Alternator Supplied Amperage | 75 A |
| Front Axle/Diff Fluid Capacity | 9.1 gal |
| Rear Axle/Diff Fluid Capacity | 9.1 gal |
| Cooling System Fluid Capacity | 20.0 gal |
| Transmission Fluid Capacity | 12.5 gal |
Engine
| Engine Model | NT-855C |
|---|---|
| Displacement | 854 in³ |
| Power Measured @ | 2,100 rpm |
| Gross Power | 309.8 hp |
| Net Power | 288.4 hp |
| Number of Cylinders | 6 |
| Torque Measured @ | 1,500 rpm |
Hydraulic System
| Pump Flow Capacity | 118.1 gal/min |
|---|---|
| Raise Time | 6.7 s |
| Lower Time | 4.2 s |
| Dump Time | 2.0 s |
| Relief Valve Setting | 2,600 psi |
| Pump Type | tandem gear type |
Dimensions
| Ground Clearance | 22 in |
|---|---|
| Height - Top of Cab | 146 in |
| Wheelbase | 135 in |
| Width Over Tires | 121 in |
| Reach at Max Lift and Dump | 52 in |
| Length with Bucket on Ground | 343 in |
| Hinge Pin - Max Height | 169 in |
Transmission
| Max Speed - Forward | 20.4 mph |
|---|---|
| Max Speed - Reverse | 20.4 mph |
| Transmission Type | Clark countershaft type powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 5.49 yd³ |
|---|---|
| Bucket Capacity - struck | 4.80 yd³ |
| Dump Clearance at Max Raise | 122 in |
| Breakout Force | 38,240 lb |
| Bucket Width | 125 in |
