Volvo

L180F

Wheel Loader

Operating Weight
57,673 lb
Bucket Capacity - heaped
5.30 yd³
Gross Power
315.2 hp
Net Power
313.8 hp
All wheel loaders

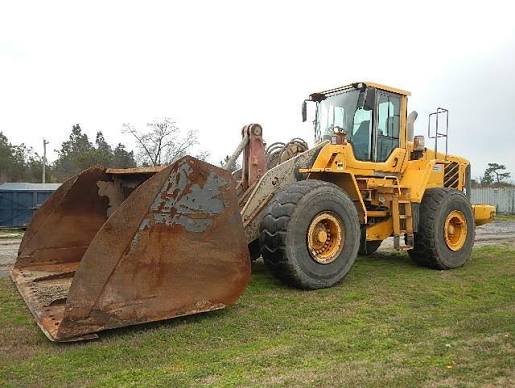

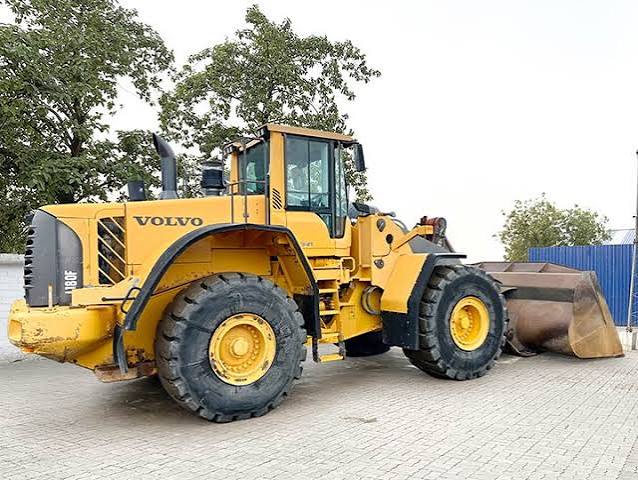

Volvo L180F Wheel Loader
1 / 5
Image 1 of 5
Image: motorbazee.com

Specifications

45 data points

Operating Specifications

Operating Specifications specifications
Operating Weight57,673 lb
Fuel Capacity88.5 gal
Tire Size26.5R25 L3
Hydraulic System Fluid Capacity41.3 gal
Static Tipping Weight46,870 lb
Operating Voltage24 V
Turning Radius291 in
Engine Oil Fluid Capacity12.7 gal
Rear Axle Oscillation15 °
Alternator Supplied Amperage80 A
Front Axle/Diff Fluid Capacity11.9 gal
Rear Axle/Diff Fluid Capacity14.6 gal
Cooling System Fluid Capacity11.1 gal
Transmission Fluid Capacity11.9 gal
Rated Bucket Capacity4.80 – 18.30 yd³

Engine

Engine specifications
Engine ModelD12DLAE3
Displacement732 in³
Power Measured @1,500 rpm
Gross Power315.2 hp
Net Power313.8 hp
Number of Cylinders6
AspirationTurbocharged and Intercooled
Torque Measured @1,400 rpm
MakeVolvo

Weights

Weights specifications
Operating Weight58,510 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity65.3 gal/min
Raise Time6.4 s
Lower Time3.3 s
Dump Time1.8 s
Relief Valve Setting3,771 psi

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab142 in
Wheelbase141 in
Width Over Tires117 in
Reach at Max Lift and Dump49 in
Length with Bucket on Ground343 in
Hinge Pin - Max Height176 in

Transmission

Transmission specifications
Max Speed - Forward22.5 mph
Max Speed - Reverse22.5 mph
Transmission TypeAutomatic Powershift
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped5.30 yd³
Dump Clearance at Max Raise125 in
Bucket Width126 in
