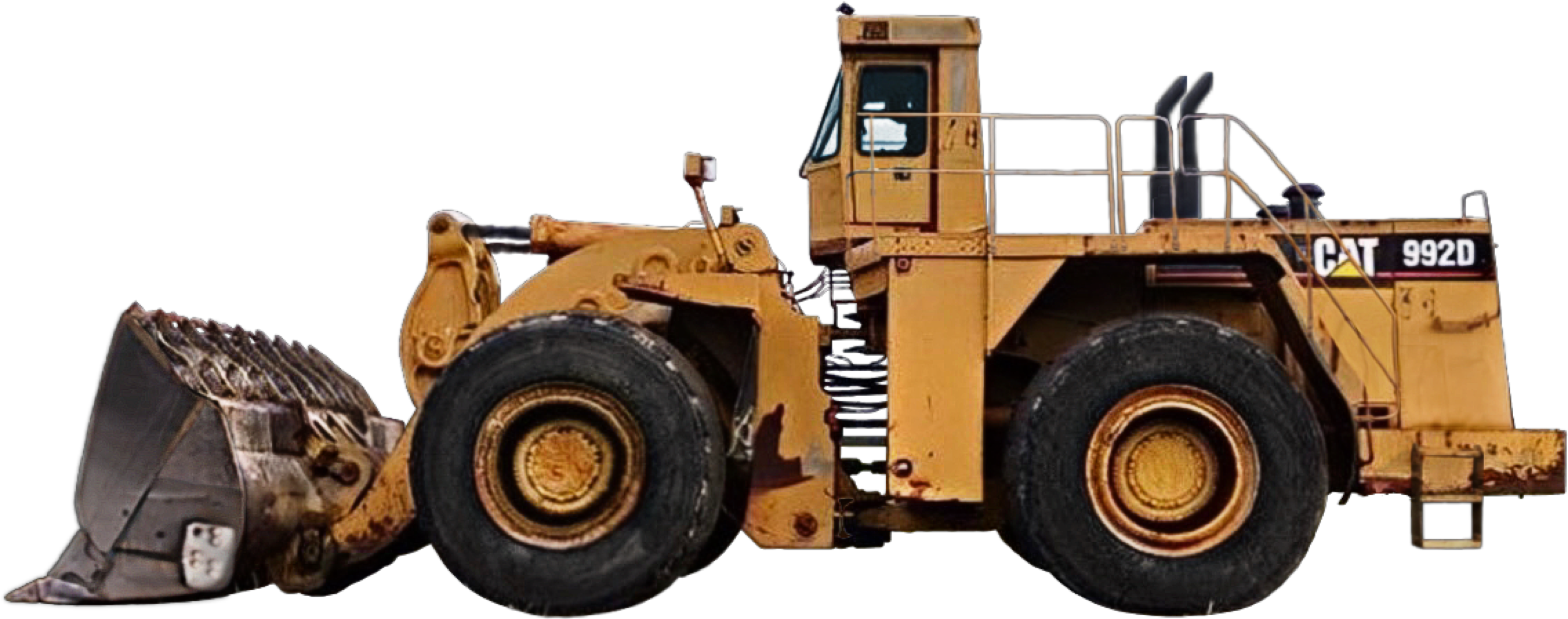

Caterpillar
992D
- Operating Weight
- 196,560 lb
- Bucket Capacity - heaped
- 14.00 yd³
- Gross Power
- 735.0 hp
- Net Power
- 690.0 hp
1 / 5
Image 1 of 5
Specifications
39 data points
Operating Specifications
| Operating Weight | 196,560 lb |
|---|---|
| Fuel Capacity | 300.1 gal |
| Tire Size | 45/65-45 38PR L5 |
| Hydraulic System Fluid Capacity | 143.0 gal |
| Static Tipping Weight | 113,527 lb |
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 18.8 gal |
| Rear Axle Oscillation | 22 ° |
| Alternator Supplied Amperage | 75 A |
| Front Axle/Diff Fluid Capacity | 79.3 gal |
| Rear Axle/Diff Fluid Capacity | 79.3 gal |
| Cooling System Fluid Capacity | 36.0 gal |
| Transmission Fluid Capacity | 34.9 gal |
Engine
| Engine Model | 3412 |
|---|---|
| Power Measured @ | 2,200 rpm |
| Gross Power | 735.0 hp |
| Net Power | 690.0 hp |
| Aspiration | turbocharged |
Hydraulic System
| Pump Flow Capacity | 473.9 gal/min |
|---|---|
| Raise Time | 11.4 s |
| Lower Time | 3.7 s |
| Dump Time | 3.4 s |
| Relief Valve Setting | 3,250 psi |
| Pump Type | closed with pressure control |
Dimensions
| Height - Top of Cab | 217 in |
|---|---|
| Wheelbase | 191 in |
| Reach at Max Lift and Dump | 91 in |
| Length with Bucket on Ground | 519 in |
| Hinge Pin - Max Height | 247 in |
Transmission
| Max Speed - Forward | 13.1 mph |
|---|---|
| Max Speed - Reverse | 14.3 mph |
| Transmission Type | planetary electric shift power shift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 14.00 yd³ |
|---|---|
| Bucket Capacity - struck | 11.69 yd³ |
| Dump Clearance at Max Raise | 165 in |
| Breakout Force | 146,711 lb |
| Bucket Width | 187 in |
