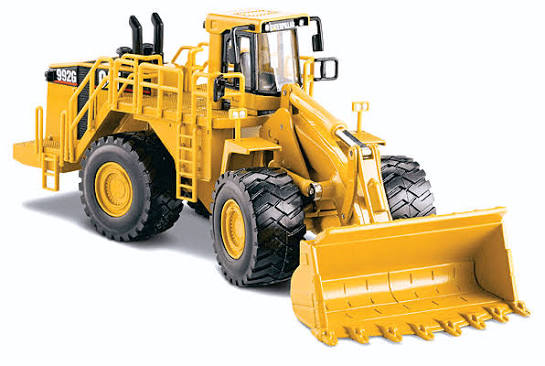

Caterpillar
992G
- Operating Weight
- 209,278 lb
- Bucket Capacity - heaped
- 15.00 yd³
- Gross Power
- 880.0 hp
- Net Power
- 800.0 hp
1 / 5

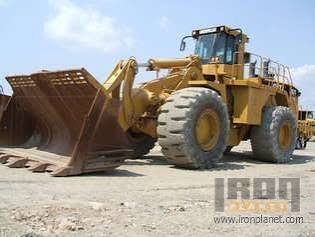

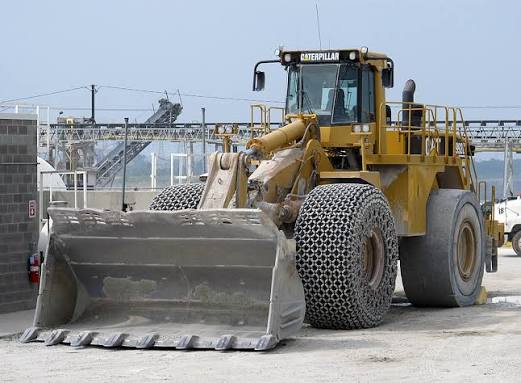

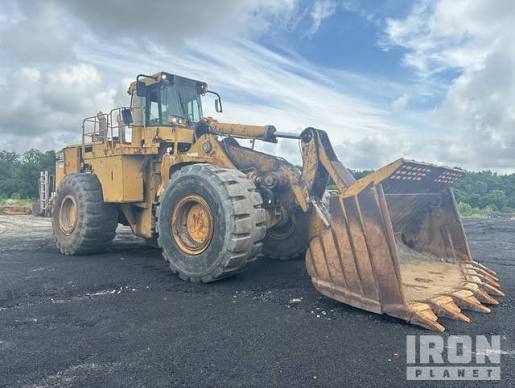

Image 1 of 5
Specifications
85 data points
Operating Specifications
| Operating Weight | 209,278 lb |
|---|---|
| Fuel Capacity | 413.0 gal |
| Tire Size | 45/65 50 ply |
| Hydraulic System Fluid Capacity | 84.8 gal |
| Static Tipping Weight | 132,921 lb |
| Operating Voltage | 24 V |
| Turning Radius | 438 in |
| Engine Oil Fluid Capacity | 26.5 gal |
| Rear Axle Oscillation | 20 ° |
| Alternator Supplied Amperage | 100 A |
| Front Axle/Diff Fluid Capacity | 91.0 gal |
| Rear Axle/Diff Fluid Capacity | 86.0 gal |
| Cooling System Fluid Capacity | 53.9 gal |
| Transmission Fluid Capacity | 44.6 gal |
| Breakout Force | 237,825 lb |
| Articulation Angle | 43 ° |
| Static Tipping Load - Full Turn | 112,777 lb |
| Dump Clearance | 228 in |
| Rated Payload | 42,920 lb |
| Cat Truck Match - Standard | 777D |
| Rated Payload - Standard | 42,920 lb |
Engine
| Engine Model | Cat 3508B EUI |
|---|---|
| Displacement | 2,105 in³ |
| Power Measured @ | 1,750 rpm |
| Gross Power | 880.0 hp |
| Net Power | 800.0 hp |
| Number of Cylinders | 8 |
| Aspiration | twin turbocharged |
| Torque Measured @ | 1,300 rpm |
| Stroke | 8 in |
| Bore | 7 in |
| Torque Rise | 30.0 % |
| Rated Speed | 1,750 rpm |
Hydraulic System
| Raise Time | 9.2 s |
|---|---|
| Lower Time | 3.5 s |
| Dump Time | 3.3 s |
| Relief Valve Setting | 4,500 psi |
Dimensions
| Ground Clearance | 28 in |
|---|---|
| Height - Top of Cab | 221 in |
| Wheelbase | 233 in |
| Overall Length | 616 in |
| Width Over Tires | 179 in |
| Reach at Max Lift and Dump | 91 in |
| Length with Bucket on Ground | 615 in |
| Hinge Pin - Max Height | 274 in |
| Reach at Maximum Lift/Dump | 95 in |
| Height - Top of Exhaust | 206 in |
| Wheel Base Length | 233 in |
| Hinge Pin Height at Full Lift | 274 in |
Transmission
| Max Speed - Forward | 13.5 mph |
|---|---|
| Max Speed - Reverse | 14.9 mph |
| Transmission Type | Planetary Powershift |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
| Forward - 1 | 4.1 mph |
| Reverse - 1 | 4.6 mph |
| Forward - 2 | 7.2 mph |
| Reverse - 2 | 7.9 mph |
| Forward - 3 | 12.4 mph |
| Reverse - 3 | 13.7 mph |
Bucket
| Bucket Capacity - heaped | 15.00 yd³ |
|---|---|
| Bucket Capacity - struck | 12.40 yd³ |
| Dump Clearance at Max Raise | 182 in |
| Breakout Force | 138,360 lb |
| Bucket Width | 191 in |
| Bucket Capacities | 31.00 yd³ |
| Maximum Bucket Capacity | 16.00 yd³ |
Service Refill Capacities
| Cooling System | 76.7 gal |
|---|---|
| Transmission | 44.7 gal |
| Crankcase | 27.0 gal |
| Fuel Tank | 413.0 gal |
| Differential - Final Drives - Front | 91.2 gal |
| Differential - Final Drives - Rear | 86.2 gal |
| Hydraulic System - Tank Only | 86.2 gal |
| Hydraulic System Factory Fill | 170.7 gal |
Steering System
| Steering Angle - Each Direction | 43 ° |
|---|---|
| Minimum Turning Radius - Over Bucket | 439 in |
| Steering | Articulation |
Axles
| Front | Fixed |
|---|---|
| Rear | Trunnion |
| Maximum Single-Wheel Rise and Fall | 25 in |
| Oscillation Angle | 10 ° |
Hydraulic Cycle Times
| Raise | 9.1 s |
|---|---|
| Dump | 3.3 s |
| Total Hydraulic Cycle Time | 15.9 s |
