Caterpillar

992K

Wheel Loader

Operating Weight
214,948 lb
Bucket Capacity - heaped
16.00 yd³
Gross Power
900.0 hp
Net Power
814.0 hp
All wheel loaders

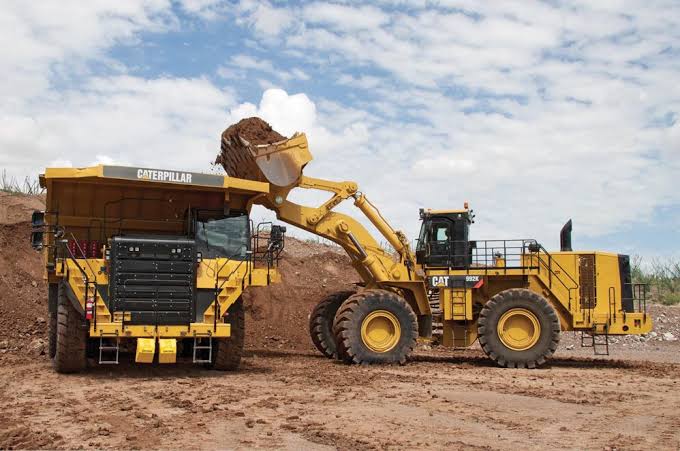

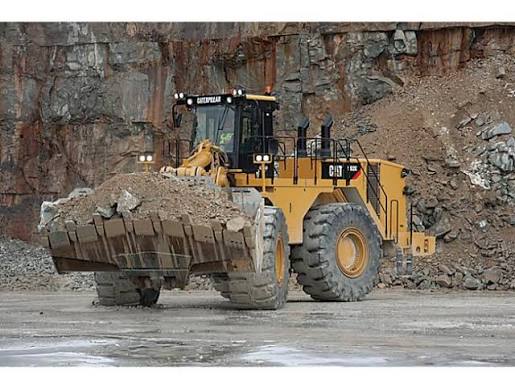

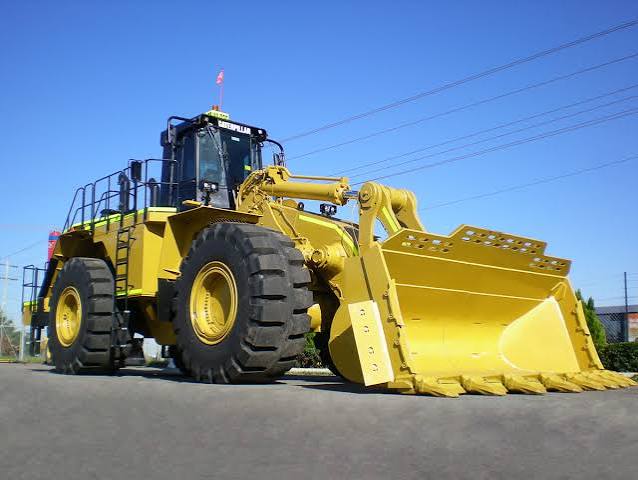

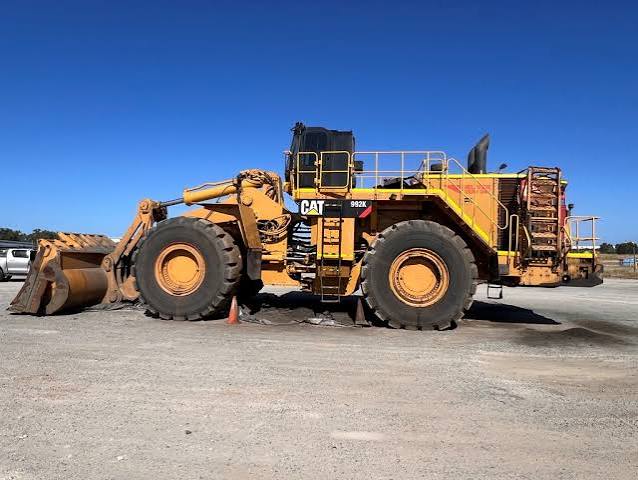

Caterpillar 992K Wheel Loader
1 / 5
Image 1 of 5
Image: petersoncat.com

Specifications

110 data points

Operating Specifications

Operating Specifications specifications
Operating Weight214,948 lb
Bucket Capacity Range14 - 16 yd
Fuel Capacity413.0 gal
Tire Size45/65 45
Static Tipping Weight113,450 lb
Operating Voltage24 V
Engine Oil Fluid Capacity32.0 gal
Alternator Supplied Amperage150 A
Front Axle/Diff Fluid Capacity95.0 gal
Rear Axle/Diff Fluid Capacity91.0 gal
Cooling System Fluid Capacity77.0 gal
Transmission Fluid Capacity45.0 gal
Rated Bucket Capacity14.00 – 16.00 yd³
Breakout Force128,895 lb
Rated Payload - High Lift42,000 lb

Engine

Engine specifications
Engine ModelCat C32 with ACERT Technology
Displacement8 in³
Power Measured @1,750 rpm
Gross Power900.0 hp
Net Power814.0 hp
Number of Cylinders12
MakeCat
Stroke6 in
Bore6 in
Gross Power - SAE J1995904.0 hp
EmissionsU.S. EPA Tier 4 Final

Hydraulic System

Hydraulic System specifications
Relief Valve Setting4,500 psi

Dimensions

Dimensions specifications
Ground Clearance28 in
Height - Top of Cab224 in
Wheelbase233 in
Width Over Tires217 in
Reach at Max Lift and Dump93 in
Length with Bucket on Ground620 in
Wheel Base Length233 in

Transmission

Transmission specifications
Max Speed - Forward12.8 mph
Max Speed - Reverse13.9 mph
Transmission TypePlanetary powershift
Number of Forward Gears3
Number of Reverse Gears3
Forward - 14.3 mph
Reverse - 14.7 mph
Forward - 27.4 mph
Reverse - 28.1 mph
Forward - 312.6 mph
Reverse - 313.8 mph
Direct Drive - Forward 28.0 mph
Direct Drive - Forward 314.2 mph
Direct Drive - Reverse 28.8 mph
Direct Drive - Reverse 315.4 mph
Direct Drive - Forward 1Lock-up Disabled
Direct Drive - Reverse 14.9 mph
Converter Drive - Forward 14.4 mph
Converter Drive - Forward 27.6 mph
Converter Drive - Forward 312.8 mph
Converter Drive - Reverse 14.6 mph
Converter Drive - Reverse 28.1 mph
Converter Drive - Reverse 313.9 mph

Brakes & Steering

Brakes & Steering specifications
BrakesMeets SAE J1473 OCT90 and ISO 3450:1992

Cab & Operator

Cab & Operator specifications
ROPS/FOPSMeets SAE and ISO standards
Cab - ROPS/FOPSMeets SAE and ISO standards.

Tires & Wheels

Tires & Wheels specifications
TiresChoose from a variety of tires to match your application.

Bucket

Bucket specifications
Bucket Capacity - heaped16.00 yd³
Bucket Capacity - struck14.00 yd³
Breakout Force128,895 lb
Bucket Width191 in
Bucket Capacities16.00 yd³

General Specifications

General Specifications specifications
Operating Weight220,089 (99,831) Starting 2019 Model Year
Operating Weight lbs (kg)220,089 (99,831) Starting 2016 Model Year
Bucket Capacity9.7 - 19.5 (7.4 - 14.9) Starting 2021 Model Year
Bucket Capacity cu. yd. (cu m)14.0 - 16.0 (10.7 - 12.2) Starting 2016 Model Year
Engine typeCat C32 Starting 2021 Model Year
Engine Power814 (307) Starting 2019 Model Year
Max Dump Height14.8 (4.5) Starting 2019 Model Year
Max Dump Height ft.( m)7.8 (2.4) Starting 2016 Model Year
Travel Speed(Fwd/Rev)14.2 / 15.4 mph Starting 2021 Model Year
Engine Power HP (KW)814 (307) Starting 2016 Model Year
Tip Load136,365 61,854) Starting 2021 Model Year

Service Refill Capacities

Service Refill Capacities specifications
Cooling System77.0 gal
Transmission45.0 gal
Crankcase32.0 gal
Fuel Tank413.0 gal
Differential - Final Drives - Front95.0 gal
Differential - Final Drives - Rear91.0 gal
Fuel Tank - Standard413.0 gal
Engine Crankcase32.0 gal
Cooling Systems77.0 gal

Axles

Axles specifications
FrontFixed
RearOscillating
Oscillation Angle—

Loader Hydraulic System

Loader Hydraulic System specifications
Relief Valve Setting4,500 psi
Relief Valve Setting - Low Idle4,500 psi
Lift Cylinder, Double Acting - Stroke45 in
Tilt Cylinder, Double Acting - Stroke81 in

Hydraulic Cycle Times

Hydraulic Cycle Times specifications
Raise9.4 s
Dump1.8 s
Total Hydraulic Cycle Time14.9 s
Rack Back4.4 s
Lower Float Down3.7 s

Hydraulic System - Lift/Tilt

Hydraulic System - Lift/Tilt specifications
Lift Cylinder - Bore11 in
Lift Cylinder - Stroke45 in
Lift/Tilt System - CircuitPositive Flow Control
Relief Valve Setting - Lift/Tilt4,500 psi
Lift/Tilt System - PumpVariable Displacement Piston
Tilt Cylinder - Bore11 in
Tilt Cylinder - Stroke81 in

Hydraulic System - Steering

Hydraulic System - Steering specifications
Steering System - CircuitPilot Load Sensing
Steering System - PumpPiston Variable Displacement
Steering Cycle Times - High Idle4.4 s
Steering Cycle Times - Low Idle6.4 s
Steering Cut Off Pressure4,500 psi
