Komatsu

WA700-3 With AJSS

Wheel Loader

Operating Weight
156,570 lb
Bucket Capacity - heaped
11.41 yd³
Gross Power
684.0 hp
Net Power
672.0 hp
All wheel loaders

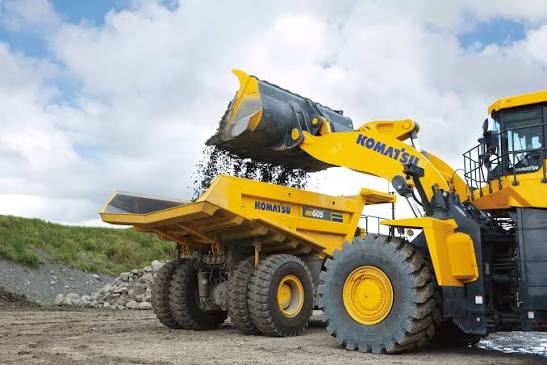

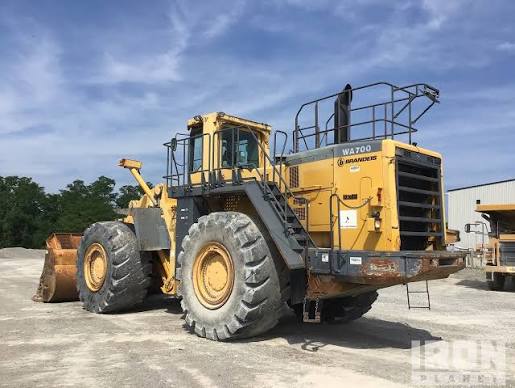

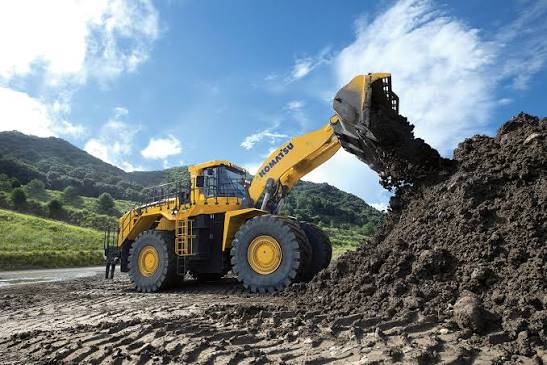

Komatsu WA700-3 With AJSS Wheel Loader
1 / 5
Image 1 of 5
Image: komatsu.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight156,570 lb
Fuel Capacity290.6 gal
Tire Size41.25/75-39
Hydraulic System Fluid Capacity124.2 gal
Static Tipping Weight103,240 lb
Operating Voltage24 V
Turning Radius326 in
Alternator Supplied Amperage75 A
Front Axle/Diff Fluid Capacity64.7 gal
Rear Axle/Diff Fluid Capacity64.7 gal
Cooling System Fluid Capacity57.9 gal
Transmission Fluid Capacity27.7 gal

Engine

Engine specifications
Engine ModelSAA6D170E-3
Displacement1,412 in³
Power Measured @2,000 rpm
Gross Power684.0 hp
Net Power672.0 hp
Number of Cylinders6
AspirationTurbocharged and Aftercooled

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity107.0 gal/min
Raise Time9.7 s
Lower Time3.6 s
Dump Time2.5 s
Relief Valve Setting4,550 psi

Dimensions

Dimensions specifications
Ground Clearance24 in
Height - Top of Cab191 in
Wheelbase190 in
Width Over Tires161 in
Reach at Max Lift and Dump76 in
Length with Bucket on Ground479 in
Hinge Pin - Max Height260 in

Transmission

Transmission specifications
Max Speed - Forward18.7 mph
Max Speed - Reverse20.1 mph
Transmission TypePower Shift
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped11.41 yd³
Bucket Capacity - struck9.90 yd³
Dump Clearance at Max Raise170 in
Bucket Width180 in
