Caterpillar

CB534D

Smooth Drum Roller

Operating Weight
23,038 lb
Max Speed
8.1 mph
Drum Width
67 in
Gross Power
130.1 hp
All smooth drum rollers

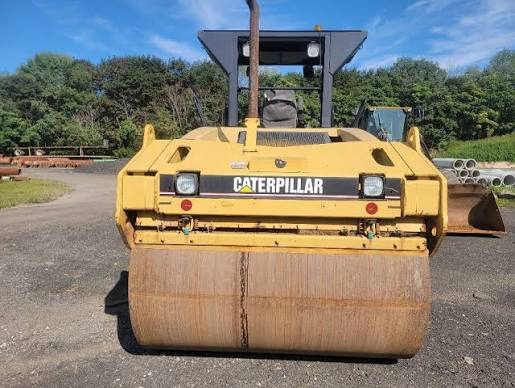

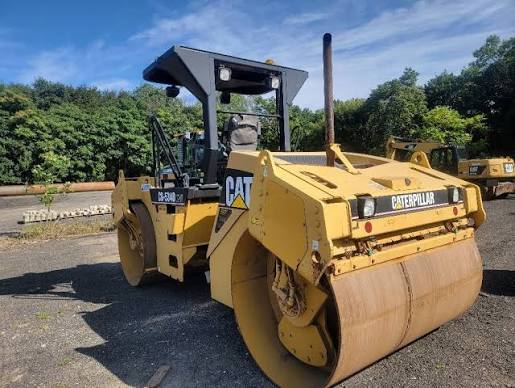

Caterpillar CB534D Smooth Drum Roller
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight23,038 lb
Max Speed8.1 mph
Fuel Capacity57.9 gal
Operating Width74 in
Operating Voltage12 V
Hydraulic System Fluid Capacity15.9 gal
Engine Oil Capacity2.4 gal
Alternator Supplied Amperage80 A
Cooling System Fluid Capacity5.3 gal

Engine

Engine specifications
Engine Model3054C
Displacement269 in³
Gross Power130.1 hp
Net Power124.8 hp
Aspirationturbocharged
MakeCaterpillar

Dimensions

Dimensions specifications
Ground Clearance12 in
Height - Top of Cab122 in
Wheelbase12 in
Overall Length16 in
Overall Width73 in
Turning Radius - Inside164 in

Drum

Drum specifications
Drum Width67 in
Drum Diameter51 in
Vibration Frequency 142 vpm
Nominal Amplitude - High0 in
Centrifugal Force - High20,907 lb
Vibration Frequency 242 vpm
Static Linear Load36 lb-ft
Centrifugal Force - Low8,093 lb
Nominal Amplitude - Low0 in
Nominal Amplitude - Med0 in
Centrifugal Force - MEd17,310 lb
Nominal Amplitude - Med High0 in
Centrifugal Force - Med High21,806 lb
Centrifugal Force - Med Low13,039 lb
Nominal Amplitude - Med Low0 in
