Caterpillar
Ingersoll Rand

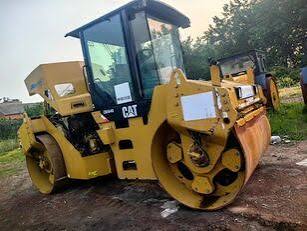

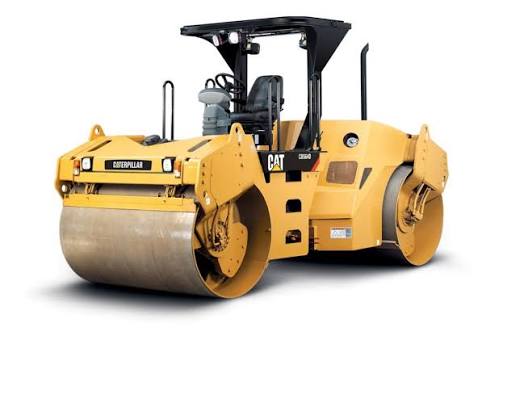

DD38HF
Smooth Drum Roller
17 specifications
1 / 5
Image 1 of 5
Specifications
31 data points
Operating Specifications
| Operating Width | 91 in |
|---|---|
| Travel Speed - Maximum | 8.0 mph |
| Ground Clearance | 12 in |
| Curb Clearance | 35 in |
| Turning Radius - Inside Drum Edge | 1,860 in |
| Turning Radius - Outside Drum Edge | 239 in |
Engine
| Engine Model | Cat 3054C |
|---|---|
| Gross Power | 130.0 hp |
| Make | Caterpillar |
| Stroke | 5 in |
| Bore | 4 in |
| Net Power - ISO 9249 | 125.0 hp |
Weights
| Operating Weight - With ROPS/FOPS | 27,783 lb |
|---|---|
| Operating Weight - At Rear Drum with ROPS/FOPS | 13,803 lb |
| Operating Weight - At Front Drum with ROPS/FOPS | 13,980 lb |
Dimensions
| Overall Length | 194 in |
|---|---|
| Overall Width | 96 in |
| Height - Top of ROPS/FOPS | 123 in |
| Wheel Base | 144 in |
| Compaction Width | 84 in |
| Height - Steering Wheel | 104 in |
Drum
| Drum Width | 84 in |
|---|
Service Refill Capacities
| Fuel Tank Capacity | 58.0 gal |
|---|---|
| Water Spray Tank Capacity | 290.0 gal |
Vibratory System
| Nominal Amplitude - High | 0 in |
|---|---|
| Centrifugal Force per Drum - Maximum | 25,305 lb |
| Centrifugal Force per Drum - Minimum | 18,570 lb |
| Vibration Selection | independent per drum |
| Nominal Amplitude - Low | 0 in |
| Drum Diameter | 51 in |
| Eccentric Weight Drive | hydraulic direct auto reversing |
