Caterpillar

CP433E

Padfoot Compactor

Operating Weight
16,292 lb
Max Speed
7.2 mph
Drum Width
66 in
Gross Power
100.6 hp
All padfoot compactors

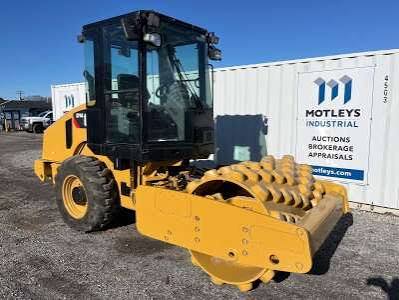

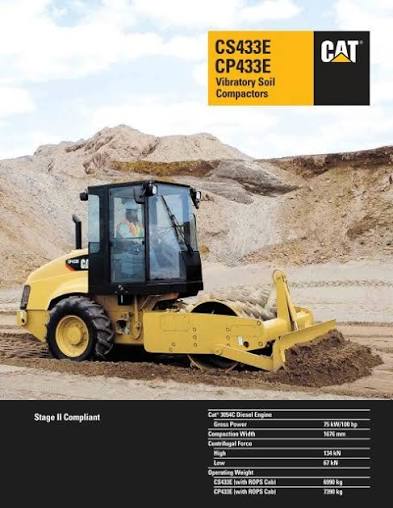

Caterpillar CP433E Padfoot Compactor
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

36 data points

Operating Specifications

Operating Specifications specifications
Operating Weight16,292 lb
Max Speed7.2 mph
Fuel Capacity42.3 gal
Operating Width71 in
Hydraulic System Fluid Capacity15.9 gal
Operating Voltage24 V
Engine Oil Capacity1.8 gal
Alternator Supplied Amperage55 A
Cooling System Fluid Capacity4.8 gal

Engine

Engine specifications
Engine Model3054C
Displacement269 in³
Gross Power100.6 hp
Net Power96.6 hp
MakeCaterpillar

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab118 in
Wheelbase9 in
Overall Width84 in
Width Over Tires66 in
Overall Length w/o Blade196 in
Overall Length w/ Blade211 in

Tires & Wheels

Tires & Wheels specifications
Tires14.9x24

Drum

Drum specifications
Drum Width66 in
Vibration Frequency 132 vpm
Centrifugal Force - High30,124 lb
Drum Diameter48 in
Nominal Amplitude - High0 in
Pad Height4 in
Number of Pads108
Centrifugal Force - Low15,062 lb
Nominal Amplitude - Low0 in
Pad Surface Area10 in³
Vibration Frequency23 – 31 vpm
Frequency1,400 – 1,914 vpm

Blades

Blades specifications
Blade Width83 in
Blade Height22 in
