Caterpillar

CP533E

Padfoot Compactor

Operating Weight
25,750 lb
Max Speed
7.5 mph
Gross Power
130.1 hp
All padfoot compactors

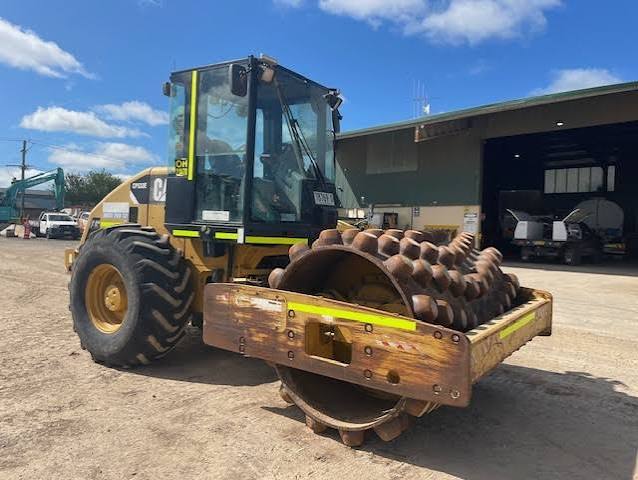

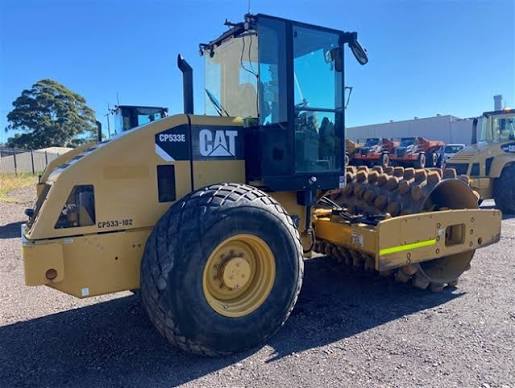

Caterpillar CP533E Padfoot Compactor
1 / 5
Image 1 of 5
Image: h-cpc.cat.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Operating Weight25,750 lb
Max Speed7.5 mph
Fuel Capacity52.9 gal
Operating Width90 in
Hydraulic System Fluid Capacity15.9 gal
Operating Voltage24 V
Engine Oil Capacity2.4 gal
Alternator Supplied Amperage55 A
Cooling System Fluid Capacity5.1 gal

Engine

Engine specifications
Engine Model3054C
Displacement269 in³
Gross Power130.1 hp
Net Power124.8 hp
Aspirationturbocharged
MakeCaterpillar

Dimensions

Dimensions specifications
Ground Clearance21 in
Height - Top of Cab121 in
Wheelbase10 in
Width Over Tires91 in
Turning Radius - Inside145 in
Overall Length w/o Blade217 in

Tires & Wheels

Tires & Wheels specifications
Tires23.1x26 14ply

Drum

Drum specifications
Vibration Frequency 132 vpm
Centrifugal Force - High59,799 lb
Drum Diameter51 in
Nominal Amplitude - High0 in
Pad Height5 in
Number of Pads140
Centrifugal Force - Low29,900 lb
Nominal Amplitude - Low0 in
Pad Surface Area14 in³
