Caterpillar
Hamm
3410P
Padfoot Compactor
31 specifications
1 / 5

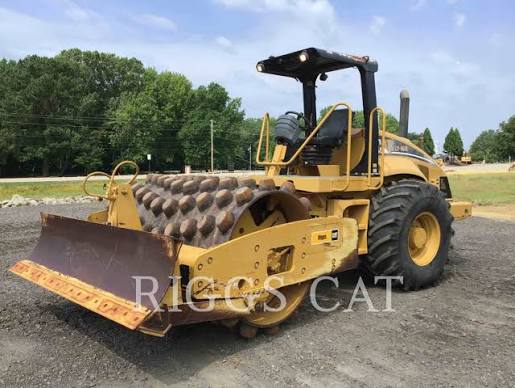

Image 1 of 5
Specifications
34 data points
Operating Specifications
| Operating Weight | 26,191 lb |
|---|---|
| Max Speed | 7.3 mph |
| Fuel Capacity | 87.2 gal |
| Operating Width | 90 in |
| Hydraulic System Fluid Capacity | 17.0 gal |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 3.2 gal |
| Alternator Supplied Amperage | 55 A |
| Cooling System Fluid Capacity | 6.9 gal |
Engine
| Engine Model | 3056E ATAAC |
|---|---|
| Displacement | 366 in³ |
| Gross Power | 150.2 hp |
| Net Power | 143.5 hp |
| Aspiration | turbocharged |
| Make | Caterpillar |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 121 in |
| Wheelbase | 10 in |
| Width Over Tires | 91 in |
| Turning Radius - Inside | 145 in |
| Overall Length w/o Blade | 227 in |
| Overall Length w/ Blade | 248 in |
Tires & Wheels
| Tires | 23.1x26 10ply |
|---|
Drum
| Vibration Frequency 1 | 32 vpm |
|---|---|
| Centrifugal Force - High | 59,799 lb |
| Drum Diameter | 51 in |
| Nominal Amplitude - High | 0 in |
| Pad Height | 5 in |
| Number of Pads | 140 |
| Centrifugal Force - Low | 29,900 lb |
| Nominal Amplitude - Low | 0 in |
| Pad Surface Area | 14 in³ |
Blades
| Blade Width | 100 in |
|---|---|
| Blade Height | 27 in |
