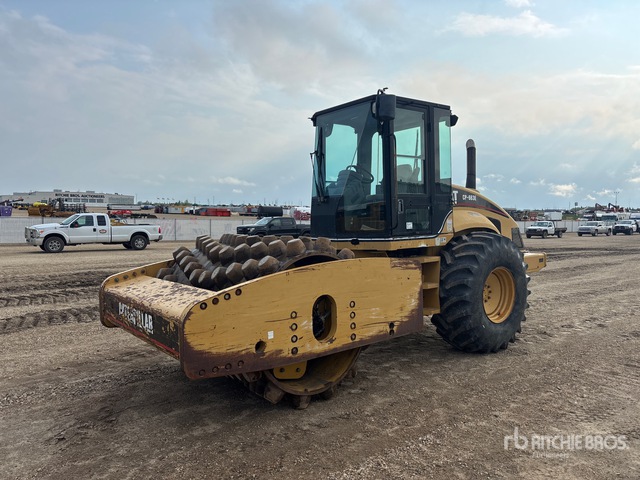

Caterpillar
Dynapac
CA610PD
Padfoot Compactor
29 specifications
1 / 5
Image 1 of 5
Specifications
32 data points
Operating Specifications
| Operating Weight | 37,038 lb |
|---|---|
| Max Speed | 7.1 mph |
| Fuel Capacity | 79.3 gal |
| Operating Width | 93 in |
| Hydraulic System Fluid Capacity | 21.2 gal |
| Operating Voltage | 24 V |
| Engine Oil Capacity | 3.7 gal |
| Alternator Supplied Amperage | 55 A |
| Cooling System Fluid Capacity | 9.3 gal |
Engine
| Engine Model | 3056E |
|---|---|
| Displacement | 366 in³ |
| Gross Power | 173.0 hp |
| Net Power | 165.0 hp |
| Aspiration | turbocharged |
| Make | Caterpillar |
Dimensions
| Ground Clearance | 21 in |
|---|---|
| Height - Top of Cab | 122 in |
| Wheelbase | 10 in |
| Width Over Tires | 94 in |
| Turning Radius - Inside | 145 in |
| Overall Length w/o Blade | 236 in |
Tires & Wheels
| Tires | 587x660mm |
|---|
Drum
| Vibration Frequency 1 | 30 vpm |
|---|---|
| Centrifugal Force - High | 74,637 lb |
| Drum Diameter | 51 in |
| Nominal Amplitude - High | 0 in |
| Pad Height | 5 in |
| Number of Pads | 140 |
| Centrifugal Force - Low | 37,318 lb |
| Nominal Amplitude - Low | 0 in |
| Pad Surface Area | 14 in³ |
| Vibration Frequency | 30 vpm |
