Caterpillar

D6H LGP II

Crawler Dozer

Operating Weight
43,682 lb
Max Speed - Forward
7.1 mph
Gross Power
170.0 hp
All crawler dozers

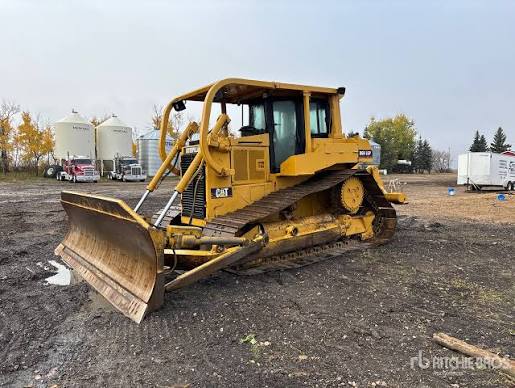

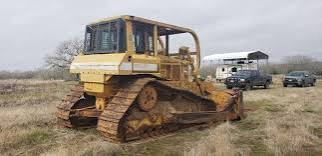

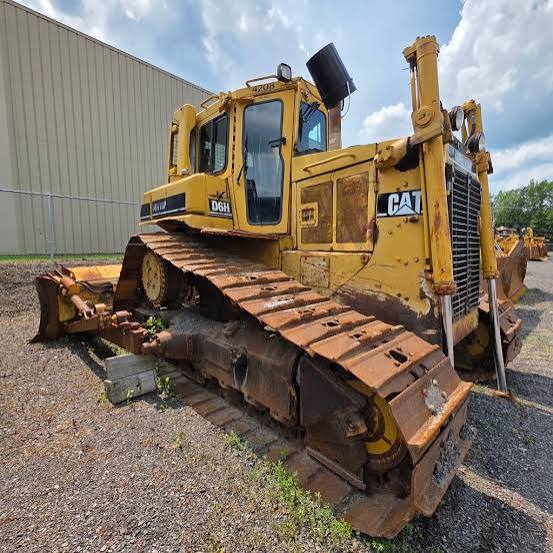

Caterpillar D6H LGP II Crawler Dozer
1 / 5
Image 1 of 5
Image: forestrytrader.com

Specifications

24 data points

Operating Specifications

Operating Specifications specifications
Operating Weight43,682 lb
Fuel Capacity89.1 gal

Engine

Engine specifications
Engine Model3306
Displacement641 in³
Gross Power170.0 hp

Dimensions

Dimensions specifications
Ground Clearance16 in
Height - Top of Cab125 in
Length of Track on Ground130 in
Width Over Tracks125 in
Length w/ Blade204 in
Length w/o Blade178 in

Transmission

Transmission specifications
Max Speed - Forward7.1 mph
Max Speed - Reverse9.0 mph
Transmission Typepowershift
Number of Forward Gears3
Number of Reverse Gears3

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge89 in
Number of Track Rollers per Side8
Standard Shoe Size36 in
Ground Contact Area9,254 in³

Standard Blade

Standard Blade specifications
Width157 in
Height43 in
Capacity4.90 yd³
