Caterpillar

E110B

Excavator

Operating Weight
25,574 lb
Max Digging Depth
187 in
Max Digging Depth
199 in
Net Power
79.2 hp
All excavators

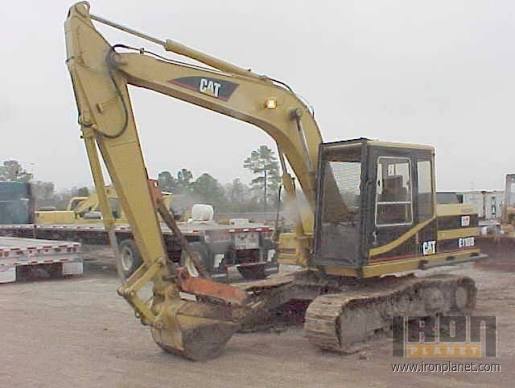

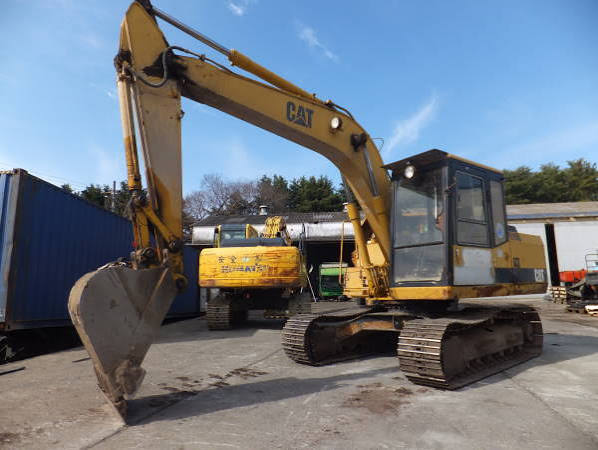

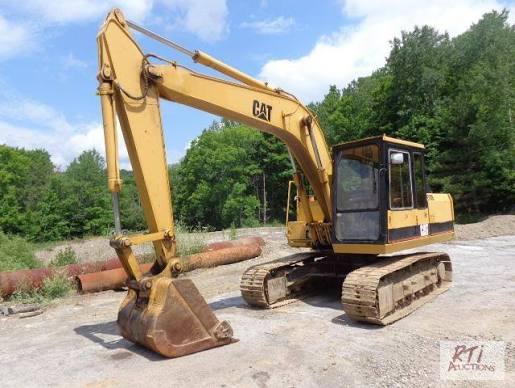

Caterpillar E110B Excavator
1 / 5
Image 1 of 5
Image: vm-cn.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight25,574 lb
Fuel Capacity66.1 gal
Hydraulic Pump Flow Capacity56.6 gal/min
Hydraulic System Fluid Capacity42.3 gal
Hydraulic System Relief Valve Pressure4,270 psi

Engine

Engine specifications
Engine Model3114
Displacement269 in³
Net Power79.2 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab107 in
Length of Track on Ground103 in
Tail Swing Radius83 in
Width to Outside of Tracks98 in
Removal Counterweight Clearance37 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge79 in
Max Travel Speed3.2 mph
Shoe Size20 in
Drawbar Pull19,334 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth187 in
Max Reach Along Ground288 in
Max Loading Height209 in
Max Vertical Wall Digging Depth167 in
Max Cutting Height302 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth199 in
Max Vertical Wall Digging Depth175 in
Max Cutting Height307 in
Max Loading Height215 in
Max Reach Along Ground299 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth221 in
Max Cutting Height320 in
Max Loading Height228 in
Max Vertical Wall Digging Depth196 in
Max Reach Along Ground319 in
