Caterpillar

E300B

Excavator

Operating Weight
66,580 lb
Max Digging Depth
283 in
Max Digging Depth
329 in
Net Power
206.6 hp
All excavators

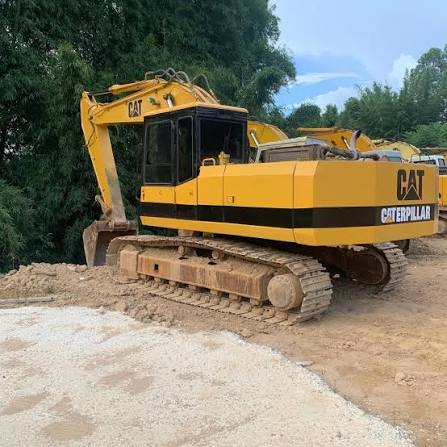

Caterpillar E300B Excavator
1 / 5
Image 1 of 5
Image: alibaba.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight66,580 lb
Fuel Capacity137.4 gal
Hydraulic Pump Flow Capacity111.0 gal/min
Hydraulic System Relief Valve Pressure4,550 psi

Engine

Engine specifications
Engine Model3306
Displacement641 in³
Net Power206.6 hp

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab124 in
Tail Swing Radius126 in
Width to Outside of Tracks134 in
Removal Counterweight Clearance46 in

Undercarriage

Undercarriage specifications
Ground Pressure7 psi
Track Gauge103 in
Max Travel Speed2.8 mph
Shoe Size32 in
Drawbar Pull52,830 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth283 in
Max Reach Along Ground430 in
Max Loading Height274 in
Max Vertical Wall Digging Depth231 in
Max Cutting Height395 in

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth329 in
Max Vertical Wall Digging Depth264 in
Max Cutting Height410 in
Max Loading Height287 in
Max Reach Along Ground466 in
