Hyundai

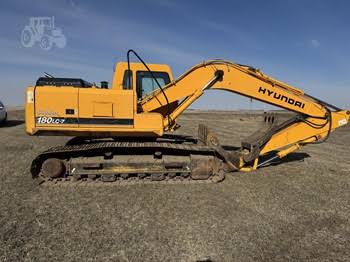

ROBEX 180LCD-7A
- Operating Weight
- 40,120 lb
- Max Digging Depth
- 223 in
- Max Digging Depth
- 239 in
- Net Power
- 116.0 hp
1 / 5
Image 1 of 5
Specifications
57 data points
Operating Specifications
| Operating Weight | 40,120 lb |
|---|---|
| Fuel Capacity | 68.7 gal |
| Hydraulic Pump Flow Capacity | 88.8 gal/min |
| Hydraulic System Fluid Capacity | 63.5 gal |
| Hydraulic System Relief Valve Pressure | 4,690 psi |
| Engine Oil Capacity | 4.7 gal |
| Cooling System Fluid Capacity | 7.4 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 1.4 gal |
| Alternator Supplied Amperage | 50 A |
Engine
| Engine Model | D04FD-TAA |
|---|---|
| Displacement | 259 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 126.0 hp |
| Net Power | 116.0 hp |
| Aspiration | Turbocharged and Charge air cooled |
| Torque Measured @ | 1,800 rpm |
| Max Torque | 345 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 115 in |
| Length of Track on Ground | 133 in |
| Tail Swing Radius | 101 in |
| Width to Outside of Tracks | 113 in |
| Removal Counterweight Clearance | 42 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 89 in |
| Number of Track Rollers per Side | 8 |
| Max Travel Speed | 3.2 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 51 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 37,500 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 223 in |
|---|---|
| Max Reach Along Ground | 336 in |
| Max Loading Height | 241 in |
| Max Vertical Wall Digging Depth | 203 in |
| Max Cutting Height | 344 in |
| Shipping Length of Unit | 355 in |
| Shipping Height of Unit | 118 in |
Bucket
| Reference Bucket Capacity | 0.99 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.40 yd³ |
| Minimum Bucket Capacity | 0.60 yd³ |
Swing Mechanism
| Swing Speed | 11 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 239 in |
|---|---|
| Max Vertical Wall Digging Depth | 239 in |
| Max Cutting Height | 350 in |
| Max Loading Height | 246 in |
| Max Reach Along Ground | 356 in |
| Shipping Length of Unit | 354 in |
| Shipping Height of Unit | 115 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 259 in |
|---|---|
| Max Cutting Height | 354 in |
| Max Loading Height | 252 in |
| Max Vertical Wall Digging Depth | 226 in |
| Max Reach Along Ground | 373 in |
| Shipping Length of Unit | 354 in |
| Shipping Height of Unit | 122 in |
