Hyundai

ROBEX 180LC-7A

Excavator

Operating Weight
40,124 lb
Max Digging Depth
223 in
Max Digging Depth
239 in
Net Power
116.0 hp
All excavators

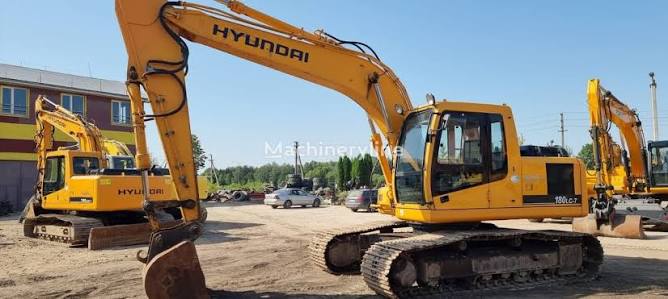

Hyundai ROBEX 180LC-7A Excavator
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

69 data points

Operating Specifications

Operating Specifications specifications
Operating Weight40,124 lb
Fuel Capacity68.7 gal
Hydraulic Pump Flow Capacity88.8 gal/min
Hydraulic System Fluid Capacity63.5 gal
Hydraulic System Relief Valve Pressure4,690 psi
Engine Oil Capacity4.7 gal
Cooling System Fluid Capacity7.4 gal
Operating Voltage24 V
Swing Drive Fluid Capacity1.4 gal
Alternator Supplied Amperage50 A

Engine

Engine specifications
Engine ModelD04FD-TAA
Displacement259 in³
Power Measured @2,000 rpm
Gross Power126.0 hp
Net Power116.0 hp
AspirationTurbocharged and Charge air cooled
Torque Measured @1,800 rpm
Max Torque345 lb-ft

Dimensions

Dimensions specifications
Ground Clearance19 in
Height - Top of Cab115 in
Length of Track on Ground133 in
Tail Swing Radius101 in
Width to Outside of Tracks113 in
Removal Counterweight Clearance42 in

Undercarriage

Undercarriage specifications
Ground Pressure6 psi
Track Gauge89 in
Number of Track Rollers per Side8
Max Travel Speed3.2 mph
Shoe Size24 in
Number of Shoes per Side51
Number of Carrier Rollers per Side2
Drawbar Pull37,500 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth223 in
Max Reach Along Ground336 in
Max Loading Height241 in
Max Vertical Wall Digging Depth203 in
Max Cutting Height344 in
Shipping Length of Unit340 in
Shipping Height of Unit118 in

Bucket

Bucket specifications
Reference Bucket Capacity0.99 yd³
Maximum Bucket Capacity1.40 yd³
Minimum Bucket Capacity0.60 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed11 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth239 in
Max Vertical Wall Digging Depth215 in
Max Cutting Height350 in
Max Loading Height246 in
Max Reach Along Ground350 in
Shipping Length of Unit340 in
Shipping Height of Unit115 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth259 in
Max Cutting Height354 in
Max Loading Height252 in
Max Vertical Wall Digging Depth226 in
Max Reach Along Ground367 in
Shipping Length of Unit340 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth216 in
Max Cutting Height371 in
Max Reach Along Ground340 in
Max Loading Height264 in
Max Vertical Wall Dig Depth185 in
Shipping Length of Unit339 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth230 in
Max Reach Along Ground359 in
Max Cutting Height378 in
Max Loading Height272 in
Max Vertical Wall Dig Depth199 in
Shipping Height of Unit121 in
Shipping Length of Unit339 in
