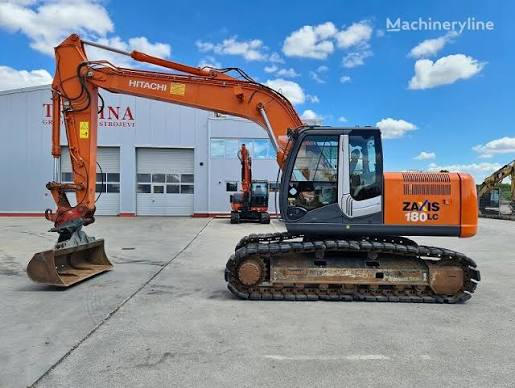

Hitachi
ZX180LC-3
- Operating Weight
- 40,345 lb
- Max Digging Depth
- 241 in
- Max Digging Depth
- 259 in
- Net Power
- 121.0 hp
1 / 5
Image 1 of 5
Specifications
53 data points
Operating Specifications
| Operating Weight | 40,345 lb |
|---|---|
| Fuel Capacity | 84.6 gal |
| Hydraulic Pump Flow Capacity | 101.0 gal/min |
| Hydraulic System Fluid Capacity | 58.2 gal |
| Hydraulic System Relief Valve Pressure | 4,975 psi |
| Engine Oil Capacity | 4.5 gal |
| Cooling System Fluid Capacity | 4.8 gal |
| Swing Drive Fluid Capacity | 1.7 gal |
Engine
| Engine Model | AI-4JJ1X |
|---|---|
| Displacement | 183 in³ |
| Power Measured @ | 2,200 rpm |
| Net Power | 121.0 hp |
| Aspiration | Turbocharged intercooled |
| Torque Measured @ | 1,800 rpm |
| Max Torque | 296 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 117 in |
| Length of Track on Ground | 133 in |
| Tail Swing Radius | 98 in |
| Width to Outside of Tracks | 110 in |
| Removal Counterweight Clearance | 41 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 88 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.3 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 46 |
| Number of Carrier Rollers per Side | 2 |
Boom/Stick Excavator Option 1
| Max Digging Depth | 241 in |
|---|---|
| Max Reach Along Ground | 352 in |
| Max Loading Height | 254 in |
| Max Vertical Wall Digging Depth | 205 in |
| Max Cutting Height | 366 in |
| Shipping Length of Unit | 355 in |
| Shipping Height of Unit | 122 in |
Bucket
| Reference Bucket Capacity | 0.99 yd³ |
|---|---|
| Maximum Bucket Capacity | 1.60 yd³ |
| Minimum Bucket Capacity | 0.71 yd³ |
Swing Mechanism
| Swing Speed | 14 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 259 in |
|---|---|
| Max Vertical Wall Digging Depth | 220 in |
| Max Cutting Height | 371 in |
| Max Loading Height | 259 in |
| Max Reach Along Ground | 366 in |
| Shipping Length of Unit | 354 in |
| Shipping Height of Unit | 122 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 278 in |
|---|---|
| Max Cutting Height | 386 in |
| Max Loading Height | 274 in |
| Max Vertical Wall Digging Depth | 247 in |
| Max Reach Along Ground | 386 in |
| Shipping Length of Unit | 354 in |
| Shipping Height of Unit | 134 in |
