Caterpillar

E650

Excavator

Net Power
375.5 hp
All excavators

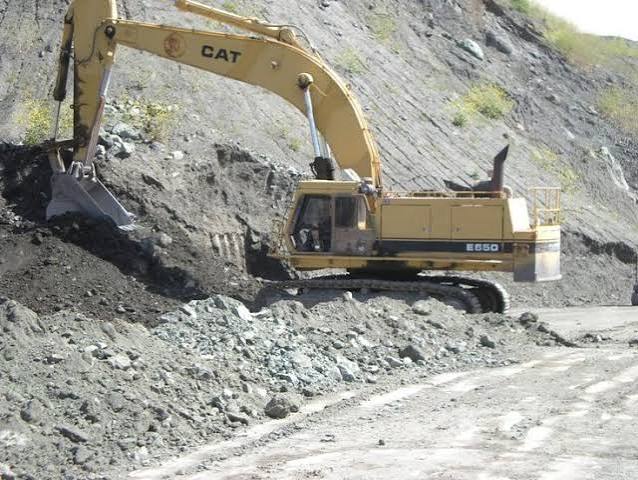

Caterpillar E650 Excavator
1 / 5
Image 1 of 5
Image: minimovers.nl

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity165.2 gal

Engine

Engine specifications
Engine ModelC S6B-TA
Displacement786 in³
Net Power375.5 hp

Dimensions

Dimensions specifications
Height - Top of Cab143 in
Upper Structure Ground Clearance53 in
Length of Tracks214 in

Undercarriage

Undercarriage specifications
Max Travel Speed2.9 mph
Loading Shovel Operating Weight145,505 lb
Loading Shovel Shoe Width24 in
Loading Shovel Ground Pressure17 psi
Backhoe Shoe Width 124 in
Backhoe Ground Pressure - Shoe 116 psi
Backhoe Shoe Width 230 in
Backhoe Ground Pressure - Shoe 213 psi
Backhoe Operating Weight - Shoe 2138,009 lb
Backhoe Shoe Width 336 in
Backhoe Ground Pressure - Shoe 311 psi

Loading Shovel

Loading Shovel specifications
Max Cutting Height414 in
Max Dump Height292 in
Max Dig Reach386 in

Backhoe Boom / Stick 1

Backhoe Boom / Stick 1 specifications
Max Dig Depth347 in
Max Cutting Height485 in
Max Dump Height330 in
Max Reach on Ground526 in
Max Vertical Wall Dig Depth292 in

Comparable machines

Other excavators in a similar weight class.
