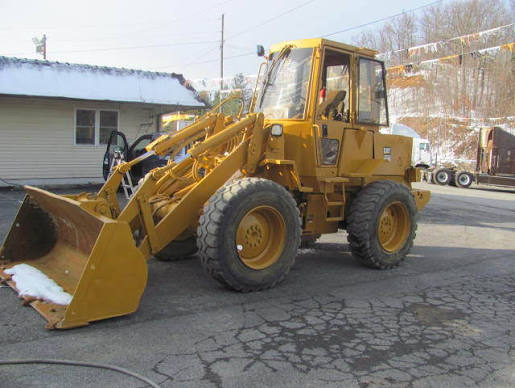

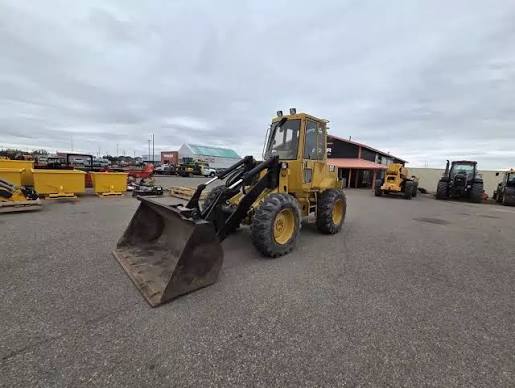

IT12B

Specifications

48 data points

Operating Specifications specifications
Operating Weight	17,527 lb
Fuel Capacity	25.7 gal
Tire Size	17.5-25 12PR
Hydraulic System Fluid Capacity	17.7 gal
Operating Voltage	24 V
Turning Radius	210 in
Rear Axle Oscillation	22 °
Alternator Supplied Amperage	55 A
Cooling System Fluid Capacity	8.0 gal
Transmission Fluid Capacity	6.1 gal
Engine Oil Capacity	3.0 gal
Static Tipping Load - Bucket	9,749 lb
Front Diff Fluid Capacity	4.8 gal
Rear Diff Fluid Capacity	4.8 gal
Static Tipping Load - Forks	7,827 lb
Static Tipping Load - Material Handler	4,418 lb

Dimensions specifications
Ground Clearance	15 in
Height - Top of Cab	119 in
Wheelbase	93 in
Hinge Pin - Max Height	144 in
Length w/ Bucket on Ground	247 in
Dump Clearance at Max Lift	108 in
Reach at Max Height and Dump	37 in
Max Lift Height	139 in
Fork Tine Length	48 in
Length with out Forks on Ground	263 in
Hook Height at Max Lift - standard	231 in
Hook Reach at Max Lift - standard	80 in
Hook Reach at Max Lift - extended	101 in
Hook Height at Max Lift - extended	263 in
