JCB
Case
21D
Wheel Loader
43 specifications
1 / 5

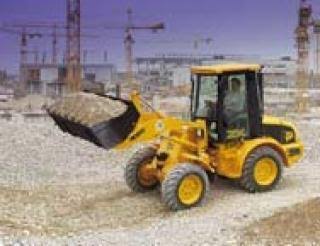

Image 1 of 5
Specifications
50 data points
Operating Specifications
| Operating Weight | 10,670 lb |
|---|---|
| Fuel Capacity | 26.5 gal |
| Tire Size | 12.5x20 |
| Hydraulic System Fluid Capacity | 22.5 gal |
| Static Tipping Weight | 7,474 lb |
| Operating Voltage | 12 V |
| Engine Oil Fluid Capacity | 2.5 gal |
| Alternator Supplied Amperage | 75 A |
| Front Axle/Diff Fluid Capacity | 2.6 gal |
| Rear Axle/Diff Fluid Capacity | 2.8 gal |
| Cooling System Fluid Capacity | 4.1 gal |
| Transmission Fluid Capacity | 22.5 gal |
| Engine Oil Capacity | 2.5 gal |
| Static Tipping Load - Bucket | 6,810 lb |
| Front Diff Fluid Capacity | 2.6 gal |
| Rear Diff Fluid Capacity | 2.8 gal |
| Static Tipping Load - Forks | 4,011 lb |
Engine
| Engine Model | 1104C-44 |
|---|---|
| Gross Power | 75.0 hp |
| Net Power | 67.0 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,400 rpm |
| Max Torque | 223 lb-ft |
Hydraulic System
| Pump Flow Capacity | 17.5 gal/min |
|---|---|
| Raise Time | 5.0 s |
| Lower Time | 3.2 s |
| Dump Time | 1.0 s |
| Pump Type | Gear |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Height - Top of Cab | 103 in |
| Wheelbase | 79 in |
| Width Over Tires | 70 in |
| Reach at Max Lift and Dump | 25 in |
| Length with Bucket on Ground | 198 in |
| Hinge Pin - Max Height | 125 in |
| Length w/ Bucket on Ground | 198 in |
| Reach at Max Height and Dump | 25 in |
| Dump Clearance at Max Lift | 100 in |
| Max Lift Height | 120 in |
| Fork Tine Length | 48 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|---|
| Max Speed - Reverse | 12.5 mph |
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 1.10 yd³ |
|---|---|
| Bucket Capacity - struck | 0.90 yd³ |
| Dump Clearance at Max Raise | 100 in |
| Breakout Force | 9,375 lb |
| Bucket Width | 76 in |
