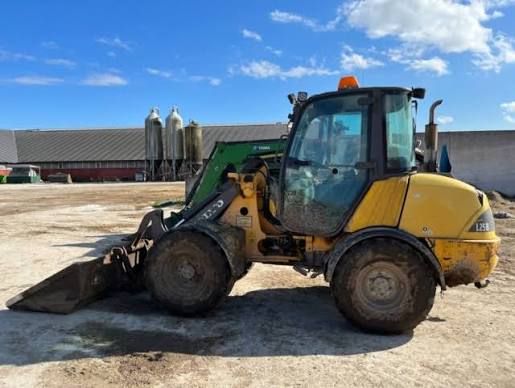

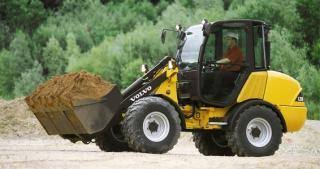

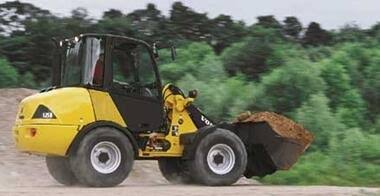

Volvo
L25B
- Operating Weight
- 10,650 lb
- Bucket Capacity - heaped
- 0.99 yd³
- Gross Power
- 62.0 hp
- Net Power
- 60.0 hp
1 / 5
Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 10,650 lb |
|---|---|
| Fuel Capacity | 15.9 gal |
| Tire Size | 400/70 R18 |
| Hydraulic System Fluid Capacity | 15.9 gal |
| Static Tipping Weight | 8,267 lb |
| Operating Voltage | 12 V |
| Engine Oil Fluid Capacity | 2.8 gal |
| Rear Axle Oscillation | 20 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 1.1 gal |
| Rear Axle/Diff Fluid Capacity | 1.6 gal |
| Rated Bucket Capacity | 0.99 – 1.60 yd³ |
Engine
| Engine Model | D3DCBE2 |
|---|---|
| Displacement | 190 in³ |
| Power Measured @ | 2,300 rpm |
| Gross Power | 62.0 hp |
| Net Power | 60.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Natural |
| Torque Measured @ | 1,700 rpm |
| Make | Volvo |
Weights
| Operating Weight | 10,650 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 14.5 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 4.0 s |
| Dump Time | 2.0 s |
| Relief Valve Setting | 3,335 psi |
| Pump Type | Gear-type pump |
Dimensions
| Ground Clearance | 13 in |
|---|---|
| Height - Top of Cab | 98 in |
| Wheelbase | 81 in |
| Width Over Tires | 69 in |
| Reach at Max Lift and Dump | 26 in |
| Length with Bucket on Ground | 200 in |
| Hinge Pin - Max Height | 125 in |
Transmission
| Max Speed - Forward | 12.5 mph |
|---|---|
| Max Speed - Reverse | 12.5 mph |
| Transmission Type | Hydrostatic |
| Number of Forward Gears | 2 |
| Number of Reverse Gears | 2 |
Bucket
| Bucket Capacity - heaped | 0.99 yd³ |
|---|---|
| Dump Clearance at Max Raise | 98 in |
| Bucket Width | 72 in |
